Fiber Coupled InGaAs PIN Photodiodes (DPIN-231)

Fiber coupled InGaAs PIN photodiodes, SMF-28 fiber, 2.5GHz cut-off frequency, FC/APC connector in stock, DPIN-23133 ($36.0):





The photodiode has superior noise and photoelectric performance. Contact us for quantity pricing.



Fiber coupled InGaAs PIN photodiodes in stock, HI1060 fiber, 2.5GHz cut-off frequency, FC/APC connector, DPIN-28133 ($72.0):





The photodiode has superior noise and photoelectric performance. Contact us for quantity pricing.



Corning PM1550 Fiber coupled InGaAs PIN photodiodes, 2.5GHz cut-off frequency, FC/APC connector, in stock, DPIN-26133 ($68.0):





The photodiode has superior noise and photoelectric performance. Contact us for quantity pricing.



Fiber coupled InGaAs PIN photodiodes, SMF-28 fiber, 2.5GHz cut-off frequency, NO connector in stock, DPIN-23113 ($32.0):





The photodiode has superior noise and photoelectric performance. Contact us for quantity pricing.



Fiber coupled InGaAs PIN photodiodes in stock, SMF-28 fiber, 2.5GHz cut-off frequency, 900um loose tube protection and mount flange, NO connector, DPIN-27113 ($38.0):





The photodiode has superior noise and photoelectric performance. Contact us for quantity pricing. For more detailed specifications...



Fiber coupled InGaAs PIN photodiodes in stock, SMF-28 fiber, 2.5GHz cut-off frequency, bare fiber, no connector, DPIN-23513 ($32.0):





The photodiode has superior noise and photoelectric performance. Contact us for quantity pricing.



Fiber coupled InGaAs PIN photodiodes, SMF-28 fiber, 2.5GHz cut-off frequency, LC/APC connector in stock, DPIN-23153 ($38.0):





The photodiode has superior noise and photoelectric performance. Contact us for quantity pricing.



Fiber coupled InGaAs PIN photodiodes, SMF-28 fiber, 2.5GHz cut-off frequency, LC/PC connector in stock, DPIN-23143 ($38.0):





The photodiode has superior noise and photoelectric performance. Contact us for quantity pricing.



Fiber coupled InGaAs PIN photodiodes, SMF-28 fiber, 6.0GHz cut-off frequency, SC/APC connector in stock, DPIN-23473 ($60.0):





The photodiode has superior noise and photoelectric performance. Contact us for quantity pricing.



Electrical and Optical Characteristics (T=25ºC):

Parameters
 Symbol
 Test conditions
 Min
 Typ Max
 Unit
Spectral Response Range
λ
   1000
   1650
 nm
Dark Current
ID
 VR = 5V
   0.2
 0.5
 nA
Responsivity
Re
 VR = 5V, λ = 1310nm
0.85
 0.90
   A/W
VR = 5V, λ = 1550nm 0.90
 0.95
   A/W
Active Area
    Φ55
 um
Capacitance
C
 f = 1MHz, VR = 5V   0.45
 0.65
 pF
Operating Voltage
Vopr
     -5
 -15
 V
Cut-off Frequency
 fc
 VR = 5V, RL = 50Ω, -3dB
 2.5 / 6
     GHz
Connector Type
   FC/APC or others



Absolute Maximum Ratings (T=25ºC):

  Parameters
 Min
 Typ Max
 Unit
  Reverse Voltage
    25
 V
  Input Optical Power
    10
 dBm
  Return Loss
    -40
 dB
  Operating Temperature
-40
   85
 °C
  Storage Temperature
-40
   85
 °C
  Fiber Lenght
  1
   m
  Lead Solder Temperature
    260
 °C
  Soldering Duration
     10
 s

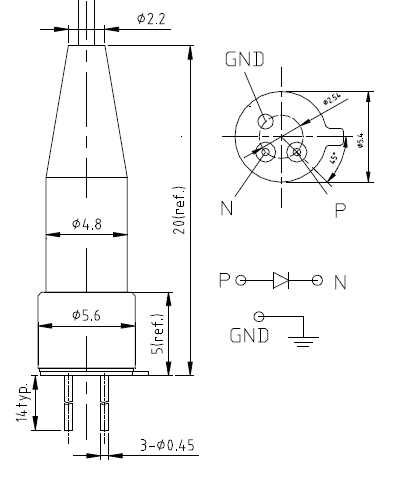

Package Dimensions:



Spectral Response, Responsivity vs. Temperature :



Dark Current vs. Temperature, Current vs. Optical Power :
