Receptacle InGaAs PIN Photodiodes

Product Description:

The hermetically sealed high speed receptacled photodiodes are designed primarily for optical communications applications. It features a wide bandwidth to 2.5GHz, excellent stability and mating repeatability. Standard receptacles available include LC, FC, and SC. All receptacle photodiodes meet Telecordia standards.

Receptacle InGaAs PIN photodiodes, 3.0GHz cut-off frequency, LC connector, in stock, DPRM-614($48.0):





The photodiode has superior noise and photoelectric performance. Contact us for quantity pricing.



Receptacle InGaAs PIN photodiodes, 2.0GHz cut-off frequency, FC/APC connector, in stock, DPRM-312($32.0):





The photodiode has superior noise and photoelectric performance. Contact us for quantity pricing.



Receptacle InGaAs PIN photodiodes, 1000um active area, FC connector, in stock, DPRM-412($50.0):





The photodiode has superior noise and photoelectric performance. Contact us for quantity pricing.



Receptacle InGaAs PIN photodiodes, 2.5GHz cut-off frequency, SC/APC connector, in stock, DPRM-217($32.0):





The photodiode has superior noise and photoelectric performance. Contact us for quantity pricing.



Receptacle InGaAs PIN photodiodes, 3.0GHz cut-off frequency, SC/UPC connector, in stock, DPRM-116($35.0):





The photodiode has superior noise and photoelectric performance. Contact us for quantity pricing.



Receptacle InGaAs PIN photodiodes, 5.0GHz cut-off frequency, SC/UPC connector, in stock, DPRM-512($38.0):





The photodiode has superior noise and photoelectric performance. Contact us for quantity pricing.

Electrical and Optical Characteristics (T=25ºC):

Parameters
 Symbol
 Test conditions
 Min
 Typ Max
 Unit
Spectral Response Range
λ
   1000
   1650
 nm
Dark Current
ID
 VR = 5V
   0.2
 0.5
 nA
Responsivity
Re
 VR = 5V, λ = 1310nm
0.85
 0.90
   A/W
VR = 5V, λ = 1550nm 0.90
 0.95
   A/W
Active Area
    Φ50 / Φ55 /Φ75
 um
Capacitance
C
 f = 1MHz, VR = 5V   0.45
 0.65
 pF
Operating Voltage
Vopr
     -5
 -15
 V
Cut-off Frequency
 fc
 VR = 5V, RL = 50Ω, -3dB
 2.0/2.5/3.0*
     GHz
Connector Type
   SC/APC, SC/UPC or FC*

*: 2.5GHz for 55um active area, SC/APC connector; 3.0GHz for 50um active area, SC/UPC connector; 2.0GHz for 75um active area, FC connector

Absolute Maximum Ratings (T=25ºC):

  Parameters
 Min
 Typ Max
 Unit
  Reverse Voltage
    25
 V
  Input Optical Power
    10
 dBm
  Operating Temperature
-40
   85
 °C
  Storage Temperature
-40
   85
 °C
  Lead Solder Temperature
    260
 °C
  Soldering Duration
     10
 s

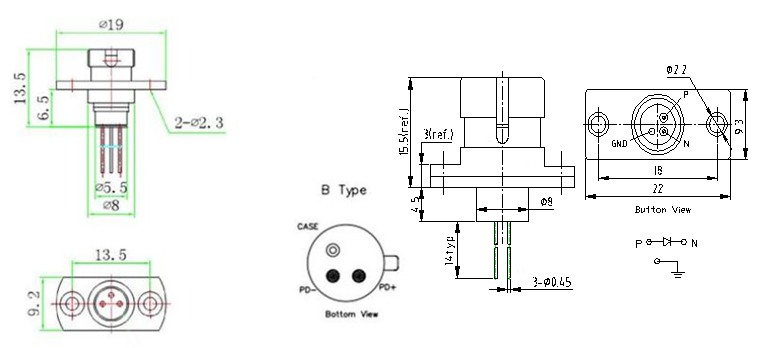

Pin Definition and Dimensions (left for FC and right SC) :

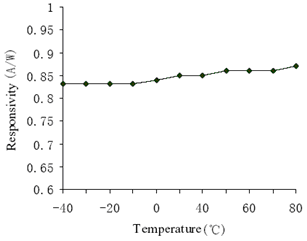

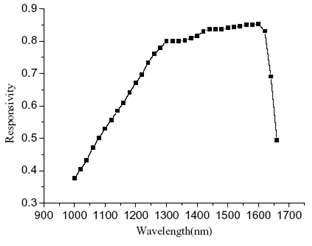

Spectral Response, Responsivity vs. Temperature :

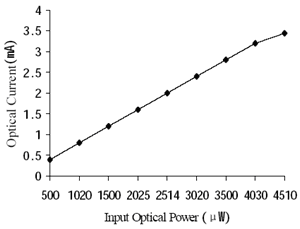

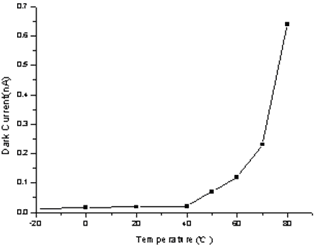

Dark Current vs. Temperature, Current vs. Optical Power :
