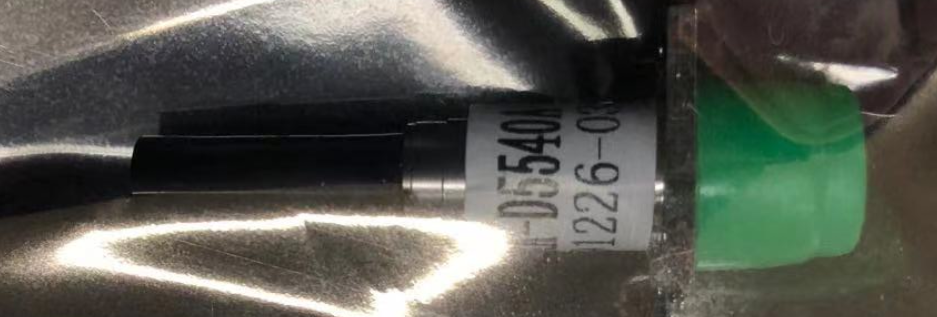

1310, 1490 and 1550nm Receptacle Laser Diodes

Product Description:

The receptacle laser diode module consists of an uncooled, reliable strained MQW laser and a back-facet photodiode. They are designed primarily for optical communications applications.

Product Features:

  • MQW-DFB laser diode with isolator
  • Data Rate up to2.5Gb/s;High Output Power up to 8mW(Iop=42mA) 10mW(Iop=47mA)
  • Excellent reliability
  • Receptacle package
  • RoHS compliant

1550nm FC receptacle DFB laser diode with isolator in stock, 4.0 mw, SLDT-15504042($85.0):





Contact us for quantity pricing.

1310nm FC receptacle DFB laser diode with isolator in stock, 8.0 mw, SLDT-13104082($95.0):





Contact us for quantity pricing.

Electrical and Optical Characteristics (T=25ºC, Po=5mW):

Parameters
Symbol
Test conditions
Min
Typ Max
Unit
Threshold Current
Ith
CW   5 12
mA
Optical Output Power(1310)
Po3
CW
0.5   10
mW
Optical Output Power(1490)
Po4
CW
0.5   4
mW
Optical Output Power(1550)
Po5
CW
0.5   4
mW
Operating Voltage
Vop
CW
1.1 1.5
V
Side mode suppression ratio
SMSR
CW
35 40   dB
Central Wavelength(1310DFB)
Λc3
CW
1290 1310 1330
nm
Central Wavelength(1490DFB)
Λc4
CW
1470 1490 1510
nm
Central Wavelength(1550DFB)
Λc5
CW
1530 1550 1570
nm
Spectral Width (-20dB)
Δλ
CW
1.0
nm
Rise Time
tr
Ib=Ith, 20~80%
0.1 0.2
ns
Fall Time
tf
Ib=Ith, 20~80%
0.1 0.2
ns
PD Monitor Current
Im
CW, Iop=Ith+20mA
100 200 1000
μA
Tracking Error
TE
Im = const. (@ Po = 5.0 mW, TC = 25°C) TC = −40 to +85°C
-1.0 1.0
dB

Absolute Maximum Ratings (T=25ºC):

  Parameters
Min
Typ Max
Unit
  Forward Current(LD)
    150
mA
  Forward Voltage(LD)
    2
V
  Reverse Current (PD)
    2
mA
  Reverse Voltage (PD)
    20
V
  Operating Temperature
-40
  85
°C
  Storage Temperature
-40
  100
°C
  Soldering Temperature (<10sec.)
    260
°C

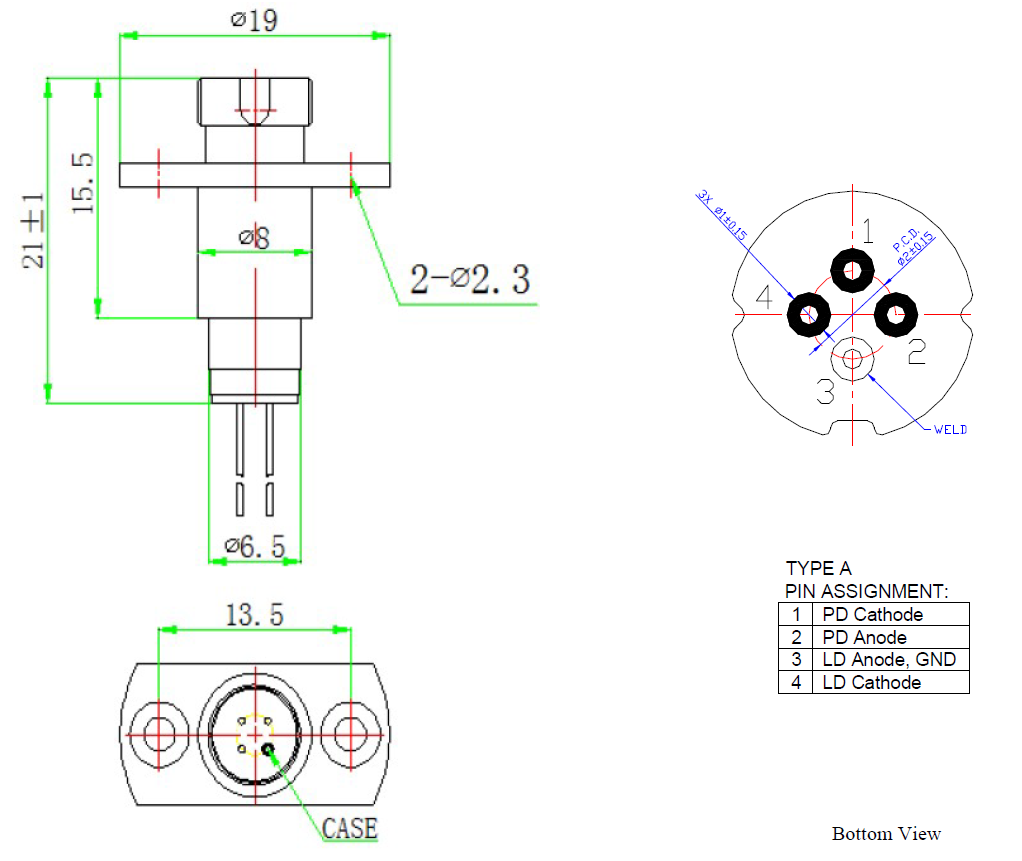

Pin Definition and Dimensions in mm :
