1310, 1490, 1550nm or other wavelength Fiber Coupled Laser Diodes

Product Description:

The pigtailed coaxial LD module consists of an uncooled, reliable strained MQW laser and a back-facet photodiode. They are designed primarily for optical communications applications.

Product Features:

  • MQW-DFB laser diode with isolator
  • Data Rate up to2.5Gb/s;High Output Power up to 8mW(Iop=42mA) 10mW(Iop=47mA)
  • Excellent reliability
  • Coaxial Pigtail package
  • RoHS compliant
Part Number
Product Description
Output Power (Po:mW)
Connector
SLDT-13101D57
1310nm DFB Laser Diode 0.5mW
0.5
SC/APC
SLDT-13101107
1310nm DFB Laser Diode 10mW
10
SC/APC
SLDT-13501053
1350nm DFB Laser Diode 10mW
5
FC/APC
SLDT-13701053
1370nm DFB Laser Diode 1mW
5
FC/APC
SLDT-14900147
1490nm DFB Laser Diode 1mW
1
SC/APC
SLDT-14901047
1490nm DFB Laser Diode 4mW
4
SC/APC
SLDT-15501D57
1550nm DFB Laser Diode 0.5mW
0.5
SC/APC
SLDT-15501047
1550nm DFB Laser Diode 4mW
4
SC/APC
SLDT-15505043
1550nm DFB Laser Diode 4mW,
PM fiber coupled
4
FC/APC
SLDT-15601047
1560nm DFB Laser Diode 4mW
4
SC/APC

1310nm SM Fiber DFB laser with isolator in stock, 0.5 mW, SC/APC connector, SLDT-13101D57($52.0):





Contact us for quantity pricing.

1310nm SM Fiber DFB laser with isolator in stock, 10.0 mW, SC/APC connector, SLDT-13101107($88.0):





Contact us for quantity pricing.

1310nm SM Fiber DFB laser with isolator in stock, 10.0 mW, no connector, bare fiber, SLDT-13102101($85.0):





Contact us for quantity pricing.

1310nm corning ZBL Fiber DFB laser with isolator in stock, 10.0 mW, FC/APC connector, bare fiber, SLDT-13102103Z($105.0):





Contact us for quantity pricing.

1350nm SM Fiber DFB laser with isolator in stock, 5.0 mW, FC/APC connector, SLDT-13501053($145.0):





Contact us for quantity pricing.

1370nm SM Fiber DFB laser with isolator in stock, 5.0 mW, FC/APC connector, SLDT-13701053($145.0):





Contact us for quantity pricing.

1490nm SM Fiber DFB laser with isolator in stock, 1.0 mW, SC/APC connector, SLDT-14900147($62.0):





Contact us for quantity pricing.

1490nm SM Fiber DFB laser with isolator in stock, 4.0 mW, SC/APC connector, SLDT-14901047($78.0):





Contact us for quantity pricing.

1550nm SM Fiber DFB laser with isolator in stock, 0.5 mW, SC/APC connector, SLDT-15501D57($52.0):





Contact us for quantity pricing.

1550nm SM Fiber DFB laser with isolator in stock, 4.0 mW, SC/APC connector, SLDT-15501047($78.0):





Contact us for quantity pricing.

1550nm PM Fiber DFB laser with isolator in stock, 4.0 mW, FC/APC connector, SLDT-15505043($215.0):





Contact us for quantity pricing.

1560nm SM Fiber DFB laser with isolator in stock, 4.0 mW, SC/APC connector, SLDT-15601047($145.0):





Contact us for quantity pricing.

Electrical and Optical Characteristics (T=25ºC, Po=5mW):

Parameters
Symbol
Test conditions
Min
Typ Max
Unit
Threshold Current
Ith
CW   5 12
mA
Optical Output Power(1310)
Po3
CW
0.5   10
mW
Optical Output Power(1490)
Po4
CW
0.5   4
mW
Optical Output Power(1550)
Po5
CW
0.5   4
mW
Operating Voltage
Vop
CW
1.1 1.5
V
Side mode suppression ratio
SMSR
CW
35 40   dB
Central Wavelength(1310DFB)
Λc3
CW
1290 1310 1330
nm
Central Wavelength(1490DFB)
Λc4
CW
1470 1490 1510
nm
Central Wavelength(1550DFB)
Λc5
CW
1530 1550 1570
nm
Spectral Width (-20dB)
Δλ
CW
1.0
nm
Rise Time
tr
Ib=Ith, 20~80%
0.1 0.2
ns
Fall Time
tf
Ib=Ith, 20~80%
0.1 0.2
ns
PD Monitor Current
Im
CW, Iop=Ith+20mA
100 200 1000
μA
Tracking Error
TE
Im = const. (@ Po = 5.0 mW, TC = 25°C) TC = −40 to +85°C
-1.0 1.0
dB

Absolute Maximum Ratings (T=25ºC):

  Parameters
Min
Typ Max
Unit
  Forward Current(LD)
    150
mA
  Forward Voltage(LD)
    2
V
  Reverse Current (PD)
    2
mA
  Reverse Voltage (PD)
    20
V
  Operating Temperature
-40
  85
°C
  Storage Temperature
-40
  100
°C
  Soldering Temperature (<10sec.)
    260
°C

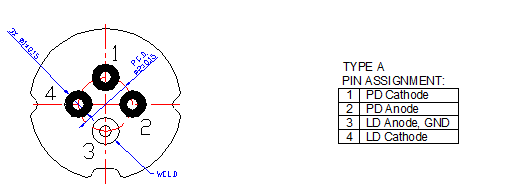

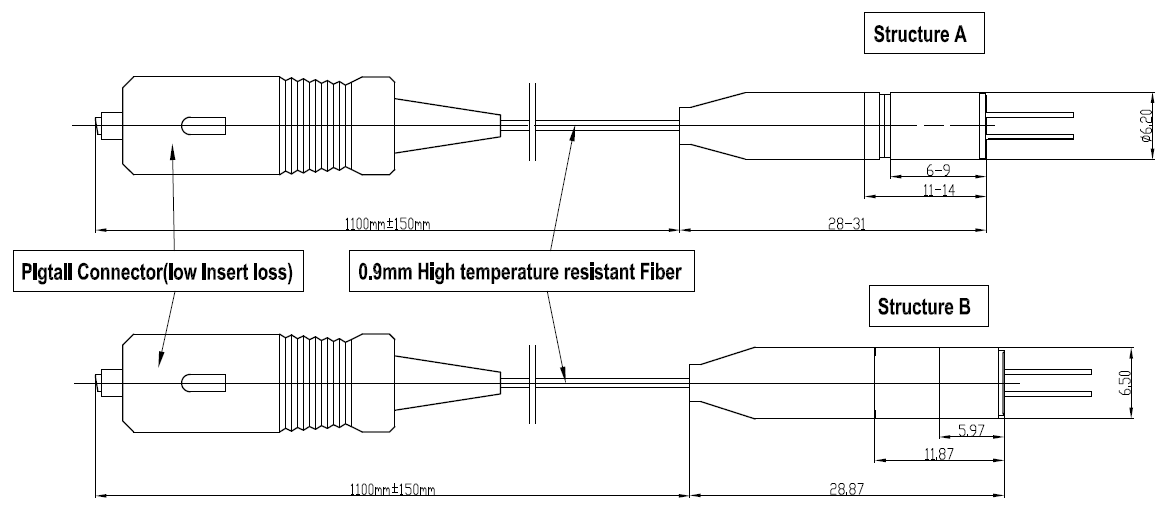

Pin Definition and Dimensions in mm :
