InGaAs PIN Photodiode Chip on Ceramic (DPIN-541)

InGaAs PIN Photodiode Chip on Ceramic, Active Area 500um in Stock, DPIN-541 ($30.0):





The photodiode chip has superior noise and photoelectric performance. Contact us for quantity pricing.



Electrical and Optical Characteristics (T=25ºC):

Parameters
Symbol
Test conditions
Min
Typ Max
Unit
Spectral Response Range
λ
  1000
  1650
nm
Dark Current
ID
VR = 5V
  1.5
3.0
nA
Responsivity
Re
VR = 5V, λ = 1310nm
0.88
0.93
  A/W
VR = 5V, λ = 1550nm 0.90
0.95
  A/W
Active Area
    Φ500
um
Capacitance
C
f = 1MHz, VR = 5V     20
pF
Operating Voltage
Vopr
    -3
-5
V



Absolute Maximum Ratings (T=25ºC):

  Parameters
Min
Typ Max
Unit
  Reverse Voltage
    20
V
  Input Optical Power
    10
dBm
  Operating Temperature
-40
  85
°C
  Storage Temperature
-40
  85
°C

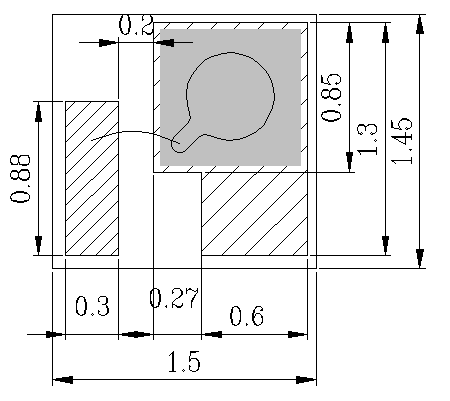

Package Dimensions:



Spectral Response, Responsivity vs. Temperature :



Dark Current vs. Temperature:
