Pyroelectric Infrared Sensor

Precision micro-optics offers a series of both digital and analog pyroelectric IR detectors for applications in smart home, security systems as well as others. the detectors are available in Single-, Dual- and Quad-Element configurations

Analog PIR Sensor:

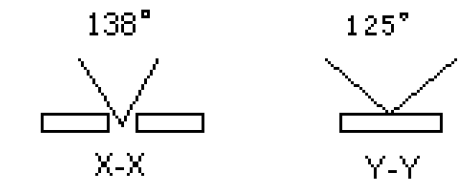

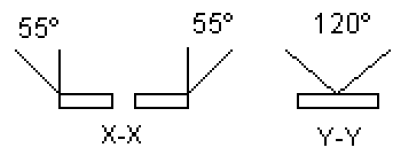

Part Number	Spectral Response (μm)	Window Size (mm)	Field of View (°)	Noise[Vp-p] (mV)
D203S	5~14	4×3		< 80
D204S	5~14	4×3		< 70
D203B	5~14	5×3.8		< 70
D204B	5~14	5×3.8		< 70

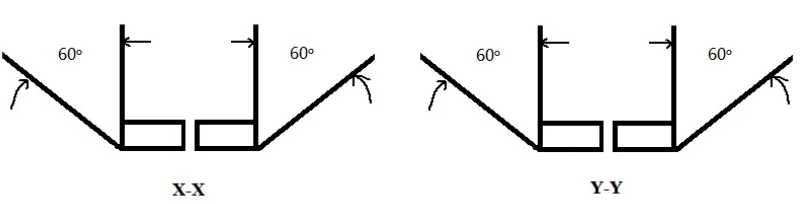

B2X2	5~14	4×4mm		< 100

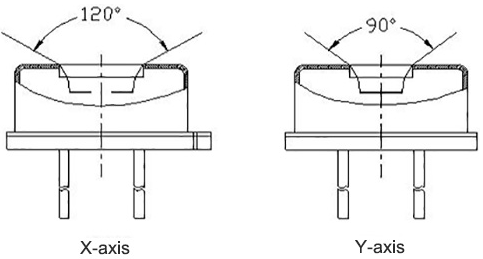

K222S	8~14	4×3mm		< 80

*: other types are available upon request.

Digital PIR Sensor:

*: other types are available upon request.
