Pigtailed Si Photodiode

Pigtailed Si Photodiodes, 62.5/125 MM fiber, FC/PC connector in stock, DPSI-13113 ($36.0):





Contact us for quantity pricing.



Electrical and Optical Characteristics (T=25ºC):

Parameters
Symbol
Test conditions
Min
Typ Max
Unit

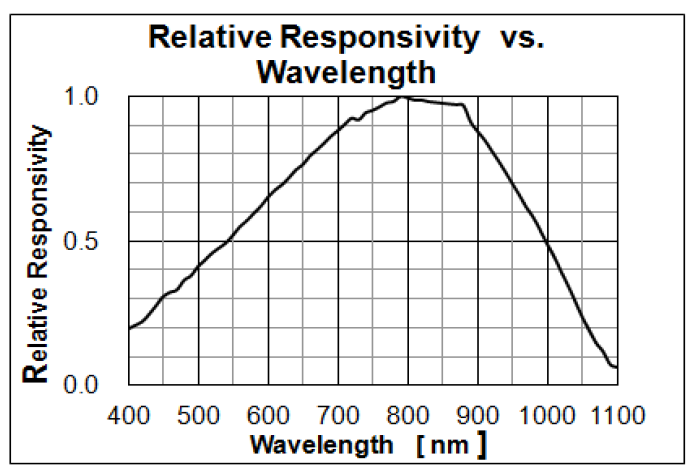

Spectral Response Range
λ
  400
  1000
nm
Dark Current
ID
VR = -15V

5
nA
Responsivity
Re
VR = 5V, λ = 850nm
0.4
0.5

A/W
Active Area
    680*680
um
Capacitance
C
VR = 5V
6.0
pF
Connector Type
  FC/PC or others
Fiber Type
  62.5/125 MM fiber



Absolute Maximum Ratings (T=25ºC):

  Parameters
Min
Typ Max
Unit
  Reverse Voltage
    40
V
  Input Optical Power
    10
dBm
  Operating Temperature
-40
  85
°C
  Storage Temperature
-40
  85
°C
  Fiber Lenght
  1
  m
  Lead Solder Temperature
    260
°C
  Soldering Duration
    10
s



Package Dimensions:
