2um Pigtailed Photodiode

2um pigtailed Photodiodes, SMf-28 bare fiber, no connector in stock, DPIN-83113 ($560.0):





Contact us for quantity pricing.



Electrical and Optical Characteristics (T=25ºC):

Parameters
Symbol
Test conditions
Min
Typ Max
Unit
Center Wavelength
λ

2000
nm
Dark Current
ID
VR = 0.5V@70℃

1
uA
Responsivity
Re
λ = 2000nm
0.8


A/W
Return Loss
RL

40


dB
Typical Bandwidth

VR = 0V, RL = 50 Ω,

90

MHz
Capacitance
C
VR = 0V, f = 1Mhz
50.0
pF
Connector Type
  FC/PC or others
Fiber Type
  SMF-28 fiber



Absolute Maximum Ratings (T=25ºC):

  Parameters
Min
Typ Max
Unit
  Reverse Voltage
    1
V
  Input Optical Power
    10
mW
  Operating Temperature
0
  70
°C
  Storage Temperature
-40
  85
°C
  Fiber Lenght
  1
  m
  Lead Solder Temperature
    260
°C
  Soldering Duration
    10
s

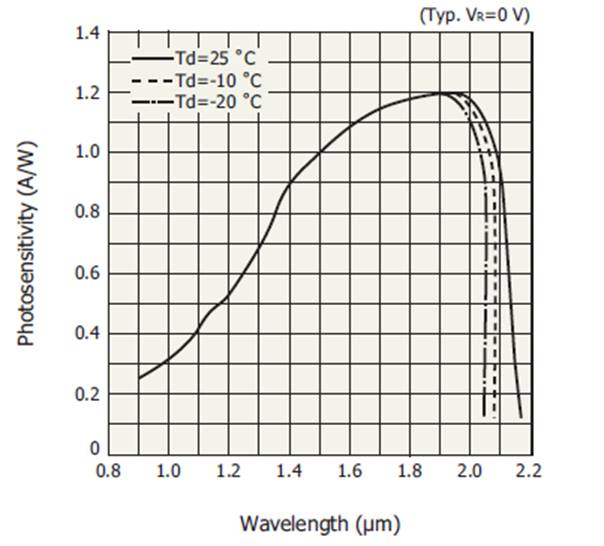

Spectral Response, Responsivity vs. Temperature:

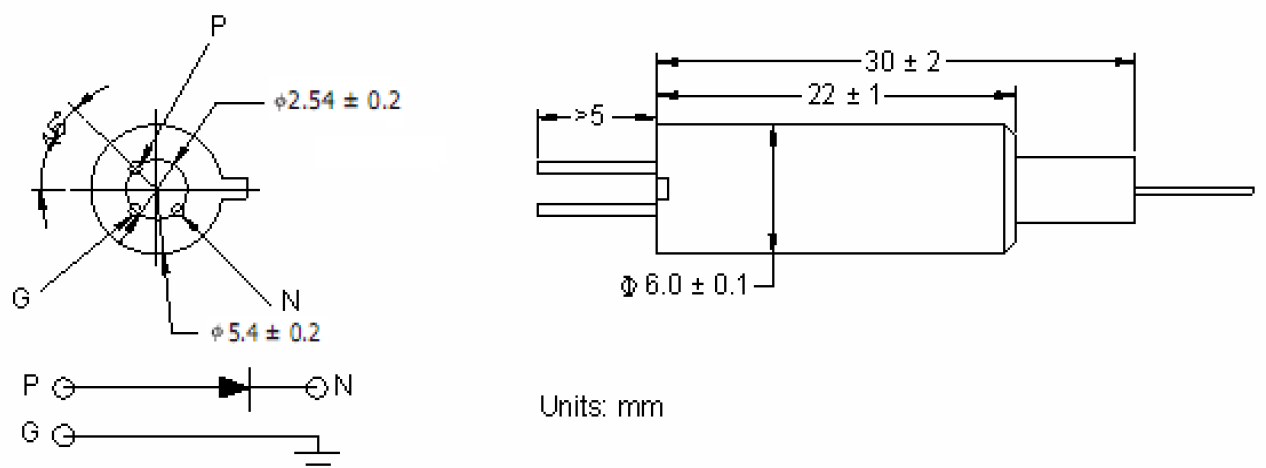

Package Dimensions:
