Infrared Thermopile Sensor (TS45D)

Infrared Thermopile Sensor is a non-contact infrared temperature measurement detector. The higher the temperature, the more infrared energy is emitted. Thermopile sensing elements consist of small thermocouples on silicon chips that absorb energy and produce output signals.

SITS-TS45D Infrared Thermopile Sensor is widely used in non-contact temperature measurement.The sensor is packaged by the TO-46 metal socket, and the electronic components such as infrared filter and thermistor are integrated inside, which has high reliability and high sensitivity.



Product Features:

  • TO-46 Package
  • High sensitivity
  • NTC Thermistor Compensation
  • Fast response
  • 5μm Long-wavelength pass filter


  • Non-contact temperature measurement
  • Ear thermometer, forehead thermometer
  • Industrial continuous temperature control

Specifications :

   Parameters Unit Min Typical Max
   Chip size mm^2 1.6×1.6
   Sensitive area mm^2 1.125×1.125
   Detection angle ° 90
   Thermopile resistance (Temp=25°C) 95 120 140
   Noise voltage (Temp=25°C) nV/Hz^1/2   45
   NEP (Blackbody=500K,1Hz@25°C) nW/Hz^1/2   0.27
   Voltage Response
Vmm^2/w   20.11
V/w 124
   Temp. coefficient of resistance
%/°C 0.1
   Time constant ms   10
   Specific detectivity
cmHz^1/2/w   1.0×10^8
   NTC Resistance (25°C) 100±3%
   NTC β (25/50°C) K 3950±1%
   Working temperature °C -30   85
   Storage Temperature °C -30   100

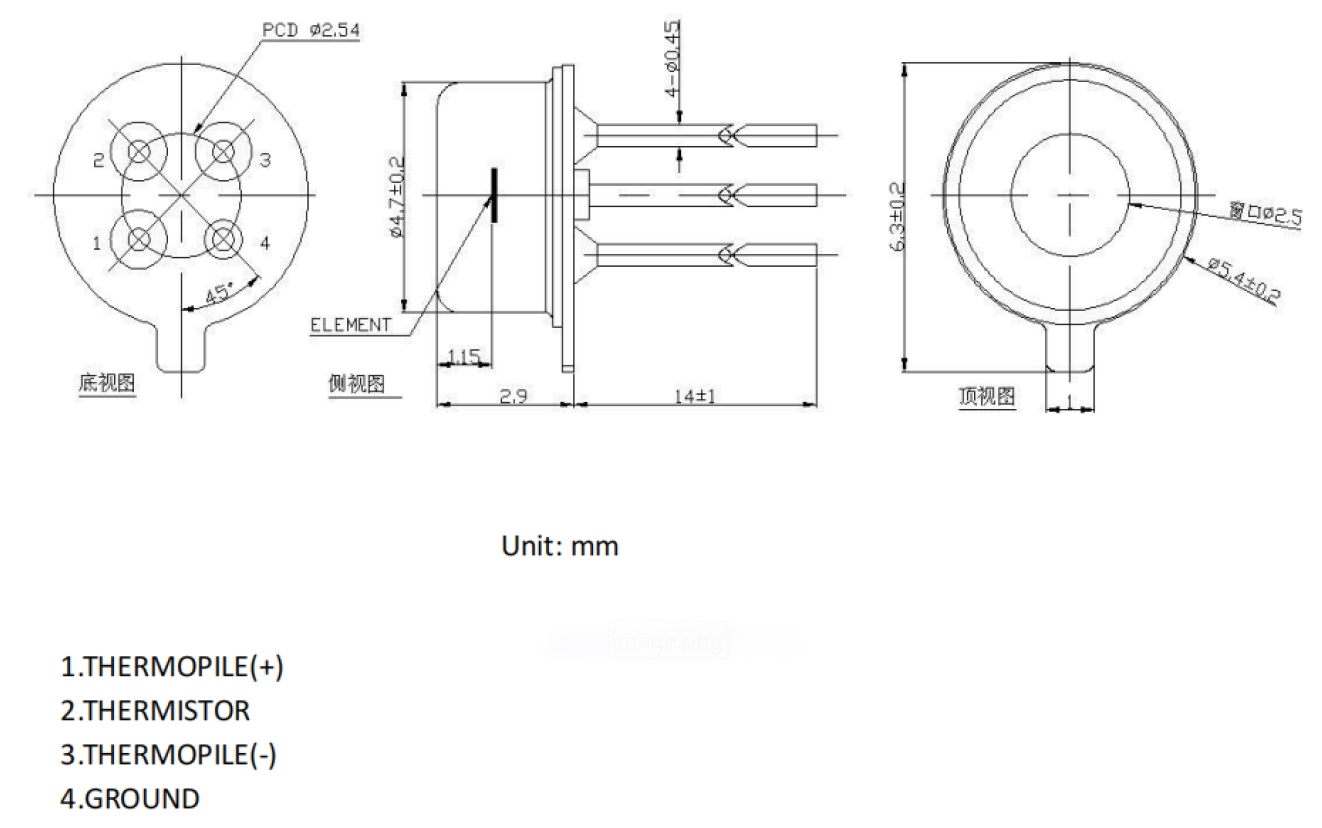

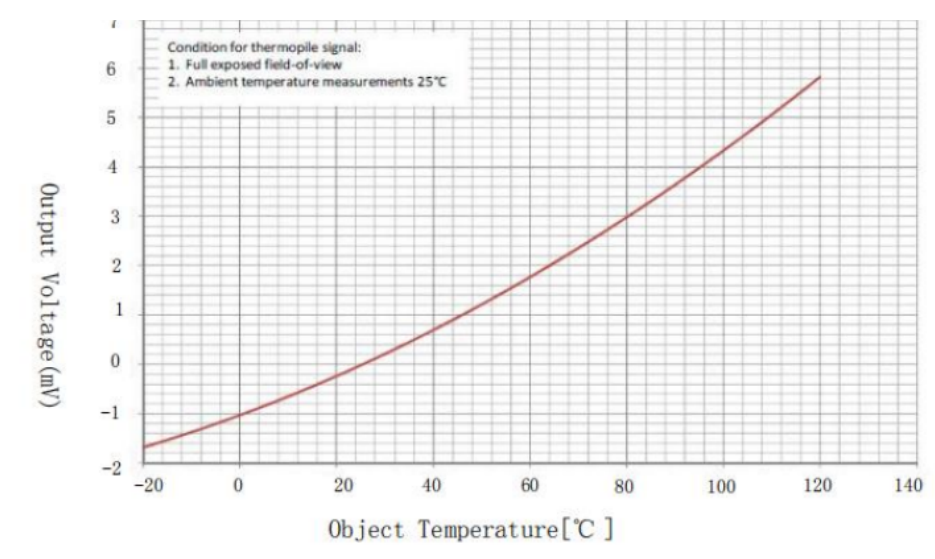

Responsivity :

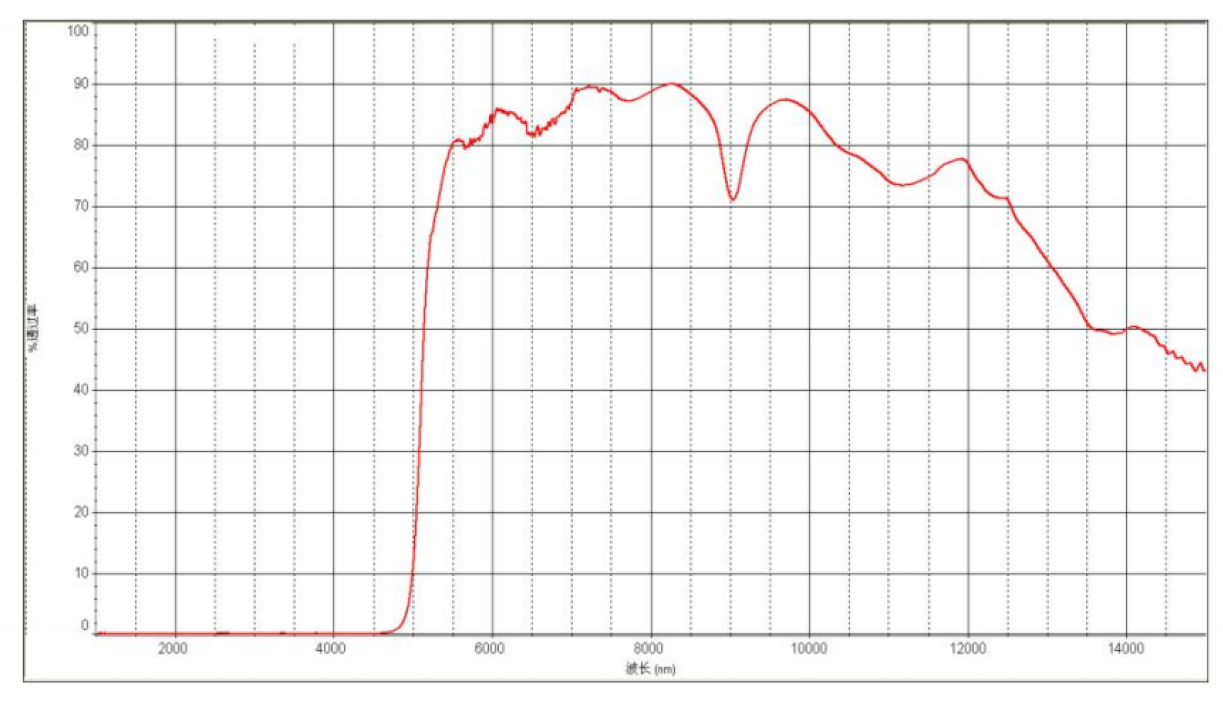

Spectral curve: :






Infrared Thermopile Sensor TS45D, SITS-TS45D ($5.2):


Lead time is around 3 weeks, Contact us for quantity pricing.
