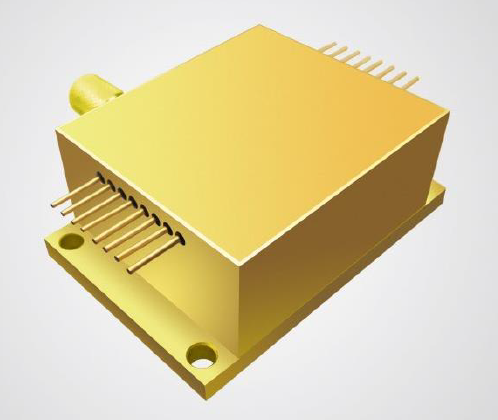

980nm and 808nm Multi-Function Detachable Laser Diode

Product Features:

  • 15W output power
  • 808nm and 980nm dual wavelengths
  • 400μm fiber core diameter
  • 0.22 N.A.
  • Optional functions: Aiming Beam, Power PD, Fiber Detector and Thermistor

Electrical and Optical Characteristics (T=25ºC):

Parameters
Symbol
Test conditions
Min
Typ Max
Unit
CW Output Power
Po
CW 15   W
Threshold Current for 980nm
Ith
CW   1   A
Threshold Current for 808nm
Ith
CW   1.8   A
Operating current for 980nm
Iop
CW 15W
  11
A
Operating current for 808nm
Iop
CW 15W
  10
A
Operating Voltage for 980nm
Vop
CW 15W
  4
V
Operating Voltage for 808nm
Vop
CW 15W
  4.5
V
Reverse Voltage
Vre
CW 15W
5   V
Slope Efficiency for 980nm
η
CW 15W
1.8   W/A
Slope Efficiency for 808nm
η
CW 15W
1.6   W/A
Electrical-to-Optical Efficiency
PE
CW 15W
40   %
Central Wavelength for 980nm
ʎc
CW 15W
970 980 990
nm
Central Wavelength for 808nm
ʎc
CW 15W
798 808 818
nm
Spectral width(FWHM)
Δʎ
CW 15W
6   nm
Wavelength Shift with Temperature
  CW 15W
0.3   nm/℃
Current for PD
Imo
  200 2000 μA
Thermistor
Rt
  10±3%/3477 (K Ω)/β(25℃)
Output Power for Aiming Beam
Pa
  2 mW
Wavelength for Aiming Beam
Ia
  630 643 nm
Voltage for Aiming Beam
Va
  2.2 V
Fiber Core Diameter
Dcore
  400   μm
Fiber Numeric Aperture
NA
0.22
ESD
ESD
  500
V
Storage temperature
    -20 70

Lead Soldering Temp
    260

Lead Soldering Time
    10
Sec
Operating Case Temperature
    15 35

Relative Humidity
    15 75
%

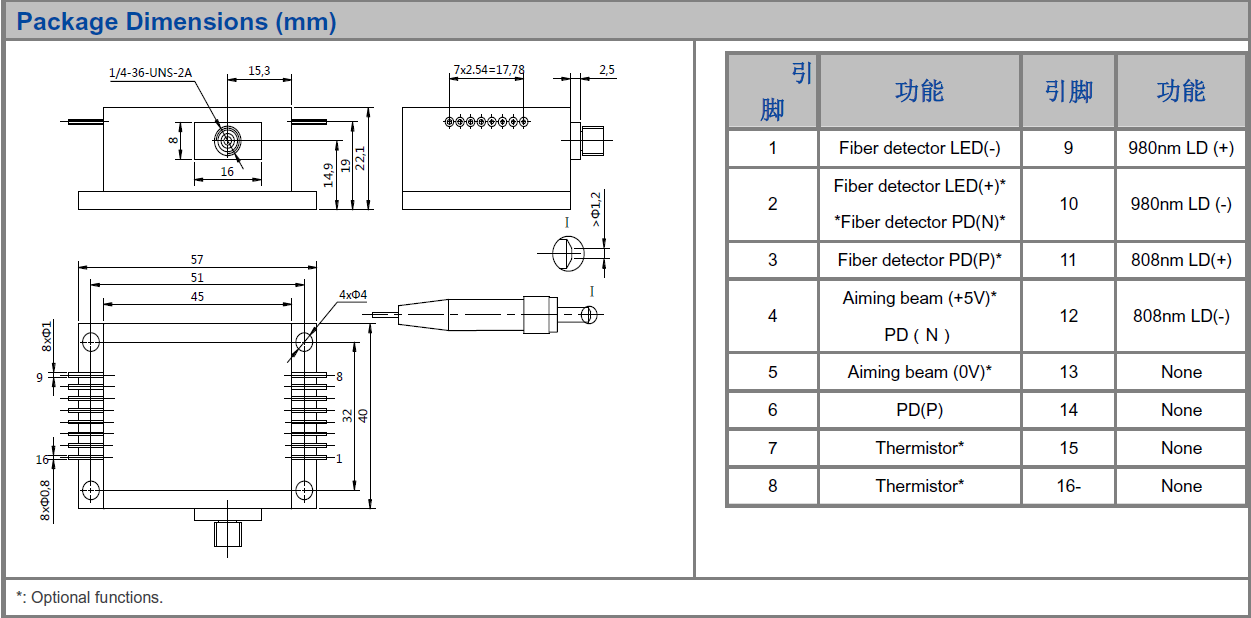

Pin Definition and Dimensions in mm :
