450nm Coaxial Packaged Diode Laser

Product Features:

  • 2.6W output power
  • 105μm fiber core diameter
  • 0.22 N.A.
  • For printing application or medical use

Electrical and Optical Characteristics (T=25ºC):

Parameters
Symbol
Test conditions
Min
Typ Max
Unit
CW Output Power
Po
CW 2.6 W
Threshold Current
Ith
CW 0.15 0.25 0.35 A
Operating current
Iop
CW 2.6W
2.3   A
Operating Voltage
Vop
CW 2.6W
3.7   5.2
V
Slope Efficiency
η
CW 2.6W
1.3 W/A
Electrical-to-Optical Efficiency
PE
CW 2.6W
25   %
Central Wavelength
ʎc
CW 2.6W
440 450 460
nm
Spectral width(FWHM)
Δʎ
CW 2.6W
6   nm
Wavelength Shift with Temperature
  CW 2.6W
0.3   nm/℃
Fiber Core Diameter
Dcore
  105   μm
Fiber Numeric Aperture
NA
0.22
ESD
ESD
  500
V
Storage temperature
    -20 70

Lead Soldering Temp
    260

Lead Soldering Time
    10
Sec
Operating Case Temperature
    15 35

Relative Humidity
    15 75
%

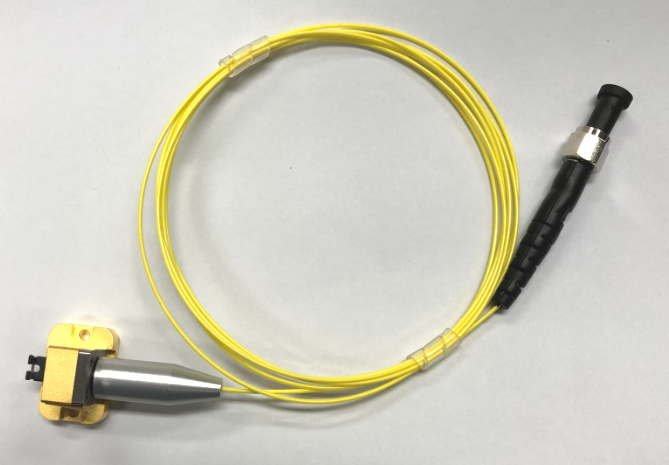

450nm multi mode fiber coupled laser diodes in stock, 900um loose tube protection, SMA905 connector. K450F03FN-2.6W ($1468.0):





Contact us for quantity pricing.

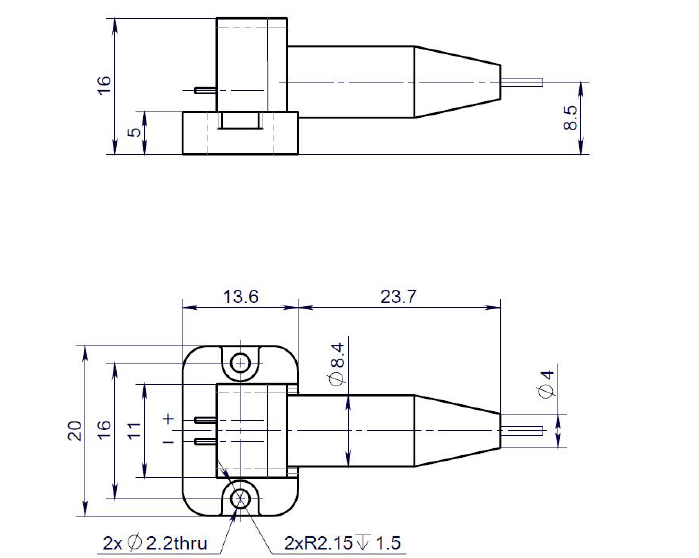

Pin Definition and Dimensions in mm :
