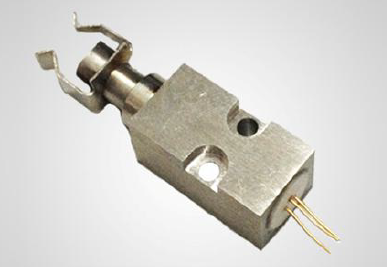

405nm Coaxial Packaged MM Laser Diodes

Product Features:

Electrical and Optical Characteristics (T=25ºC):

Parameters	Symbol	Test conditions	Min	Typ	Max	Unit
CW Output Power	Po	CW	160			mW
Threshold Current	Ith	CW		30		mA
Operating current	Iop	CW 160mW			150	mA
Operating Voltage	Vop	CW 160mW			5.5	V
Reverse Voltage	Vre	CW 160mW		5.5		V
Slope Efficiency	η	CW 160mW		1.4		W/A
Electrical-to-Optical Efficiency	PE	CW 160mW	20			%
Central Wavelength	ʎc	CW 160mW	400	405	410	nm
Spectral width(FWHM)	Δʎ	CW 160mW		4		nm
Wavelength Shift with Temperature		CW 160mW		0.3		nm/℃
Fiber Core Diameter	Dcore			40		μm
Fiber Numeric Aperture	NA			0.22
ESD	ESD				500	V
Storage temperature			-20		70	℃
Lead Soldering Temp					260	℃
Lead Soldering Time					10	Sec
Operating Case Temperature			15		35	℃
Relative Humidity			15		75	%

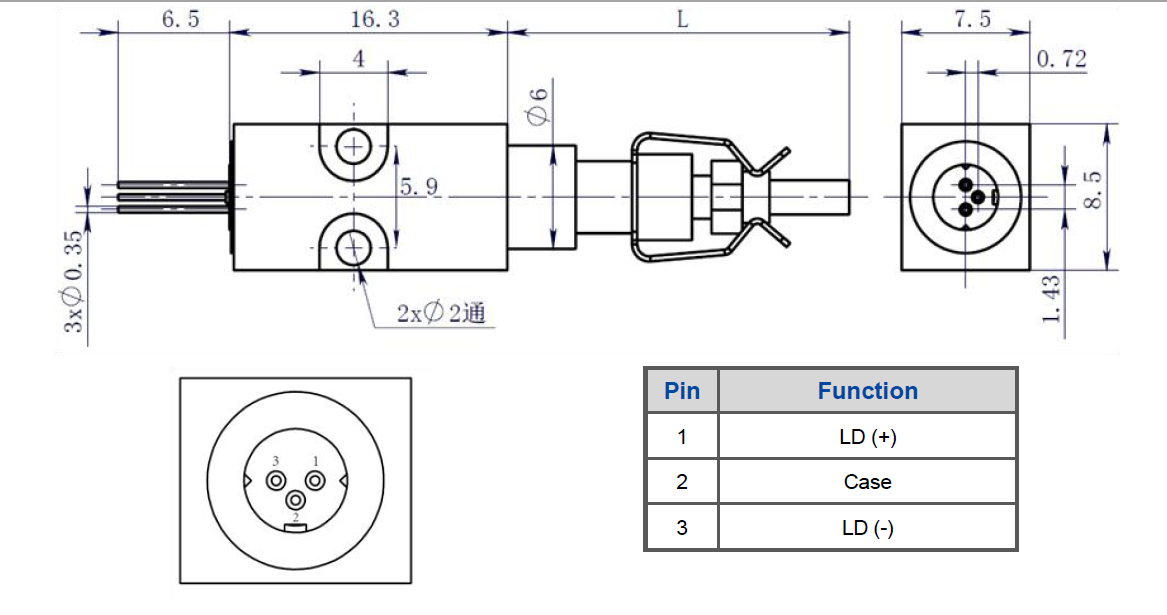

Pin Definition and Dimensions in mm :
