Silicon Optical Windows

Product Description:

Optical windows are optical materials with polished surfaces that are relatively parallel. They are used to isolate different physical environments while allowing a light beam to pass.

You may refer to this page http://www.pmoptics.com/silicon.html for material properties.



Specification:

Materials   Optical Grade Silicon
Dimensional Tolerance ± 0.1mm
Flatness λ/4 @ 632.8nm
Surface Quality 40 ~ 20
Clear Aperture 90%
Parallelism <  1 arc minute
AR coating   Specified by customer



Optical grade silicon window, diameter: 25.4mm, thickness: 1.5mm in stock, PGOW-000060312 ($30.0):





Uncoated, Surface quality: 40~20, Parallelism: < 1 arc minute. Contact us for quantity pricing.



Optical grade silicon window, diameter: 25.4mm, thickness: 1.0mm in stock, PGOW-000060412 ($28.0):





Uncoated, Surface quality: 40~20, Parallelism: < 1 arc minute. Contact us for quantity pricing.



Optical grade silicon window, 9X11mm, thickness: 0.5mm in stock, PGOW-000060122 ($16.0):





Uncoated, Surface quality: 40~20, Parallelism: < 1 arc minute. Contact us for quantity pricing.



Ordering Information:

    P    G
  O   W


  X

  X
  X


A



B



C



D



E




A

 Wavelength

1550 = 1550 nm
 0980 = 980 nm

 XXXX = Your Application Wavelength


B

 Material

 6 = Optical Grade Silicon

   0 = Special


C

 Dimensions

 01 = 9.0mm X 11.0mm X 0.5mm
   Check Standard Size Table Below
   00 = Custom Dimensions


D

 Shape

1 = Circular

   2 = Square


E

 Coating

1 = Yes
   2 = No

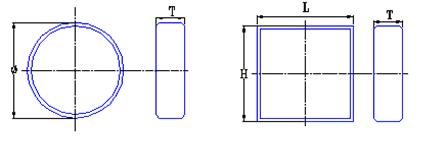

Standard Size Table :

  Dimensions P/N
L X H X W (mm) or Φ X t (mm)
  01
9.0 X 11.0 X 0.5
  02
 18.0 X 18.0 X 1.5
  03
Φ25.4 X 1.5
  04
Φ25.4 X 1.0
  05
12.0 X 12.0 X0.51
