Beamsplitters

Precision Micro-Optics offers high quality polarizing beamsplitters, non-polarizing beamsplitter cubes and plates.

A polarizing beamsplitters splits randomly polarized beams into two orthogonal, linearly polarized components. S-polarized light is reflected at a 90 degree angle while P-polarized light is transmitted.

A non-polarizing beamsplitter is an optical device to split a light beam into two beams. Cubes are made form a pair of precision high tolerance right angle prisms which are glued together. Plates have a partially transmitting coating on one surface and an antireflection coating on the second surface. When the angle of incidence (AOI) is 45 degrees, it separates a beam into two beams. The ratio of the power between two beams is stated for unpolarized light.

  Narrow Band Beamsplitter Cube
Broadband Beamsplitter Cube



  Narrow Band Beamsplitter Plate Broadband Beamsplitter Plate


  Narrow Band Polarizing Beamsplitter
Broadband Polarizing Beamsplitter

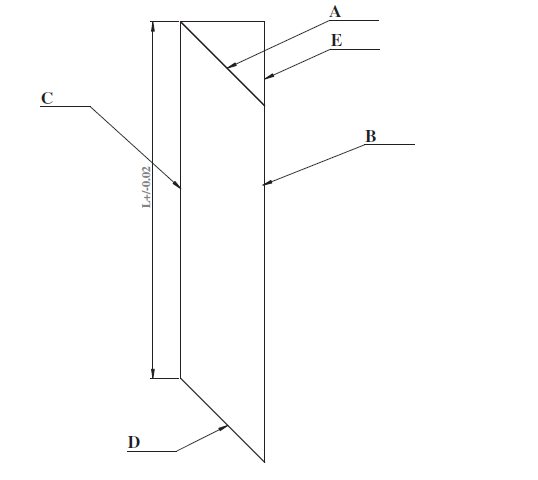

  Narrow Band Polarizing Beamsplitter Plate PBS + Rhomboid Prism




Broadband beam splitter cube, 10.0X10.0X10.0mm, 1200~1550nm in stock, PBBS-031040 ($108):





The broadband beam splitter cube features small beam deviation, polarization difference and hasboard band AR coating on all input and output surfaces. Contact us for quantity pricing. For more detailed specifications...



Broadband polarization beam splitter cube, 12.7X12.7X12.7mm, 900~1200nm in stock, PBSB-031040 ($115):





The broadband PBS features small beam deviation and hasboard band AR coating on all input and output surfaces. Contact us for quantity pricing. For more detailed specifications...



Broadband polarization beam splitter cube, 2.0X2.0X2.0mm, 900~1200nm in stock, PBSB-031010 ($106):





The broadband PBS features small beam deviation and hasboard band AR coating on all input and output surfaces. Contact us for quantity pricing. For more detailed specifications...



Narrowband polarization beam splitter cube, 4.0X4.0X4.0mm, 780nm in stock, PBSN-07801010 ($96):





The narrowband PBS features small beam deviation and has AR coating on all input and output surfaces. Contact us for quantity pricing. For more detailed specifications...



Narrowband polarization beam splitter cube, 8.0X8.0X8.0mm, 780nm in stock, PBSN-07801040 ($106):





The narrowband PBS features small beam deviation and has AR coating on all input and output surfaces. Contact us for quantity pricing. For more detailed specifications...



850nm narrow band beam splitter plate, 18X18X1.5mm. T/R=30/70 in stock, PNBP-085010221 ($48.0):





Beam splitting coating T/R=30/70±5% at 850±10nm, AOI=45º, R < 0.5% at 850±10nm on other surface. Contact us for quantity pricing. For more detailed specifications...
