IR wide bandpass filters

Specifications  for PIRF-IWBP3000~5000 Type:

  Material Silicon
  Thickness Tolerance  ± 0.05mm
  Length, Width or Diameter Tolerance  ± 0.15mm
  50% cut on
3000 ± 50nm
  50% cut off
5000 ± 50nm
  Transmission Wavelength Range (TWR)
3100 ~ 4900nm
  Out of Band Blocking
1500 ~  11000nm
  Tavg
> 85%
  Surface Quality
80/50

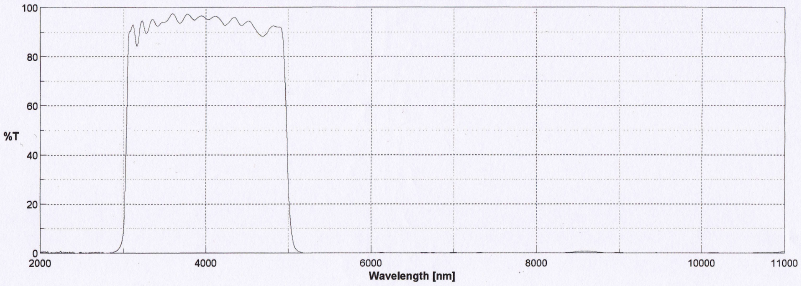

  Transmission Curve
See Figure Below



Wide Band pass Filter, TWR:3000~5000nm, diameter: 11.3mm, thickness: 0.5mm in stock, PIRF-IWBP3000~5000-01102 ($390.0):





Contact us for quantity pricing.



See other IR filters
