IR wide bandpass filters

Specifications  for PIRF-IWBP8000~14000 Type:

  Material Silicon
  Thickness Tolerance  ± 0.05mm
  Length, Width or Diameter Tolerance  ± 0.15mm
  50% cut on
8350 ± 80nm
  50% cut off
13650 ± 100nm
  Transmission Wavelength Range (TWR)
8610 ~ 13290nm
  Out of Band Blocking
5000 ~  19000nm
  Tavg
> 75%
  Surface Quality
80/50

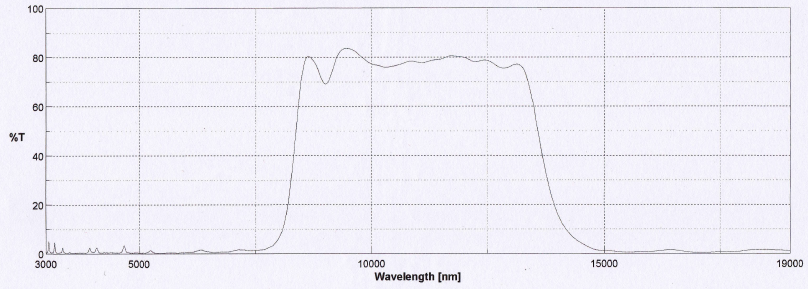

  Transmission Curve
See Figure Below



Wide Band pass Filter, TWR:8000~14000nm, size: 4.5X4.5mm, thickness: 0.5mm in stock, PIRF-IWBP8000~14000-01101 ($72.0):





Contact us for quantity pricing.



See other IR filters
