IR narrow bandpass filters

Specifications  for PIRF-INBP4260 Type 1:

  Material Silicon
  Thickness Tolerance  ± 0.05mm
  Length, Width or Diameter Tolerance  ± 0.15mm
  Central Wavelength (CWL)
4260 ± 42nm
  Half Power Bandwidth (HPB)
90 ± 20nm
  Tpeak (Tp)
75%
  Out of Band Blocking
400 ~  11000nm
  Tavg
< 1%
  Surface Quality
80/50

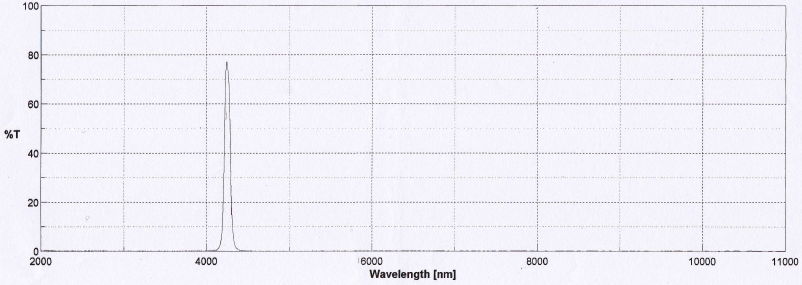

  Transmission Curve
See Figure Below



Narrow Bandpass Filter, CWL:4260nm, diameter: 10.0mm, thickness: 1.0mm in stock, PIRF-INBP4260-01101 ($168.0):





Contact us for quantity pricing.



Narrow Bandpass Filter, CWL:4260nm, size: 3.5X3.5mm, thickness: 0.5mm in stock, PIRF-INBP4260-01102 ($62.0):





Contact us for quantity pricing.



Specifications  for PIRF-INBP4260 Type 2:

  Material Silicon
  Thickness Tolerance  ± 0.05mm
  Length, Width or Diameter Tolerance  ± 0.15mm
  Central Wavelength (CWL)
4260 ± 42nm
  Half Power Bandwidth (HPB)
180 ± 20nm
  Tpeak (Tp)
85%
  Out of Band Blocking
400 ~  11000nm
  Tavg
< 1%
  Surface Quality
80/50

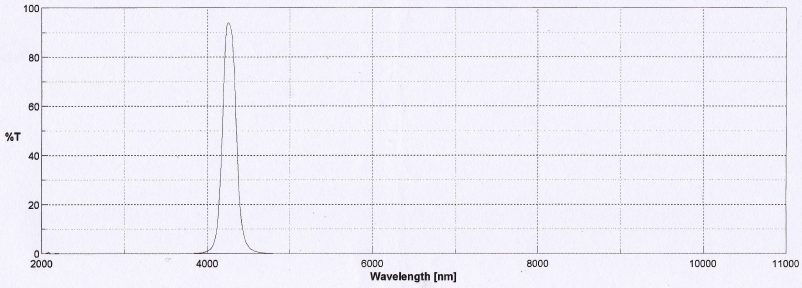

  Transmission Curve
See Figure Below



Narrow Bandpass Filter, CWL:4260nm, diameter: 20.0mm, thickness: 1.0mm in stock, PIRF-INBP4260-02101 ($230.0):





Contact us for quantity pricing.



Narrow Bandpass Filter, CWL:4260nm, size: 4.5X4.5mm, thickness: 0.5mm in stock, PIRF-INBP4260-02102 ($72.0):





Contact us for quantity pricing.



See other IR filters
