Specifications for PIRF-INBP3900 Type 1:
| |
Material |
Silicon |
| |
Thickness Tolerance |
± 0.05mm |
| |
Length, Width or Diameter Tolerance |
± 0.15mm |
| |
Central Wavelength (CWL)
|
3900 ± 40nm |
| |
Half Power Bandwidth (HPB)
|
160 ± 20nm |
| |
Tpeak (Tp)
|
80% |
| |
Out of Band Blocking
|
400 ~ 11000nm |
| |
Tavg
|
< 1% |
| |
Surface Quality
|
80/50 |
| |

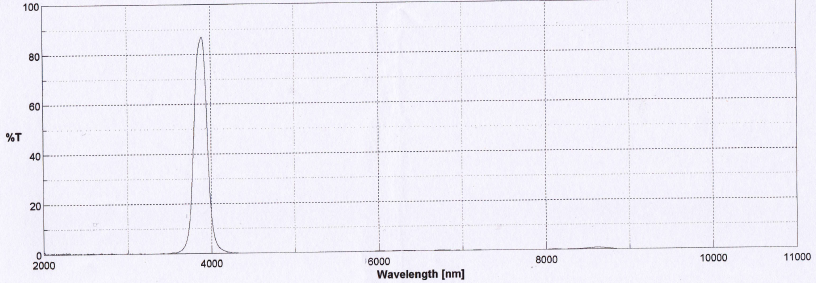

Transmission Curve
|
See Figure Below |
Narrow Bandpass Filter, CWL:3900nm, diameter: 27.95mm, thickness: 0.5mm in stock, PIRF-INBP3900-03101 ($230.0):
|
|
|
|
|
|
|
|
| Contact us for quantity pricing. |
Specifications for PIRF-INBP3900 Type 2:
| |
Material |
Silicon |
| |
Thickness Tolerance |
± 0.05mm |
| |
Length, Width or Diameter Tolerance |
± 0.15mm |
| |
Central Wavelength (CWL)
|
3900 ± 39nm |
| |
Half Power Bandwidth (HPB)
|
180 ± 20nm |
| |
Tpeak (Tp)
|
80% |
| |
Out of Band Blocking
|
400 ~ 11000nm |
| |
Tavg
|
< 1% |
| |
Surface Quality
|
80/50 |
| |

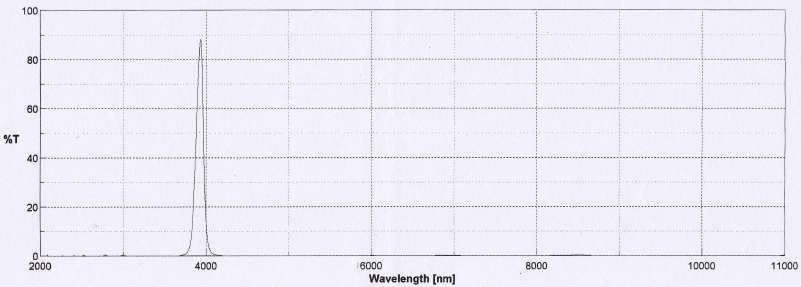

Transmission Curve
|
See Figure Below |
Narrow Bandpass Filter, CWL:3900nm, size: 5.3X5.3mm, thickness: 0.5mm in stock, PIRF-INBP3900-02101 ($66.0):
|
|
|
|
|
|
|
|
| Contact us for quantity pricing. |
