IR narrow bandpass filters

Specifications  for PIRF-INBP2310:

  Material BK7
  Thickness Tolerance  ± 0.05mm
  Length, Width or Diameter Tolerance  ± 0.15mm
  Central Wavelength (CWL)
2310 ± 20nm
  Half Power Bandwidth (HPB)
30 ± 10nm
  Tpeak (Tp)
85%
  Out of Band Blocking
400 ~  3000nm
  Tavg
< 1%
  Surface Quality
80/50

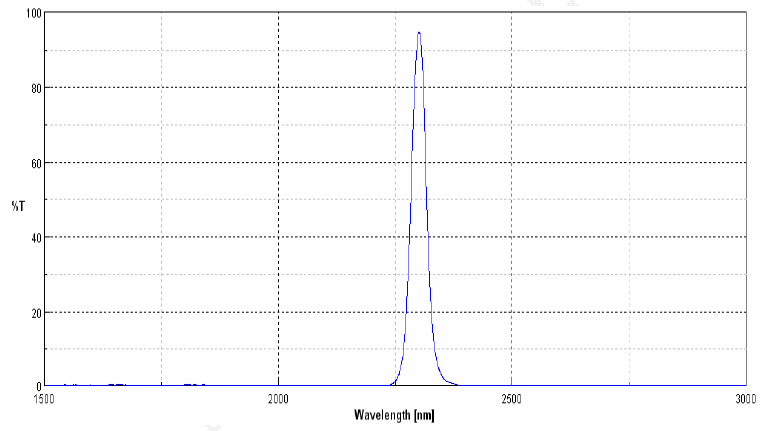

  Transmission Curve
 See Figure Below



Narrow Bandpass Filter, CWL:2310nm, diameter: 10.0mm, thickness: 1.0mm in stock, PIRF-INBP2310-01401 ($182.0):





Contact us for quantity pricing.



See other IR filters
