IR narrow bandpass filters

Specifications  for PIRF-INBP1920:

  Material BK7
  Thickness Tolerance  ± 0.05mm
  Length, Width or Diameter Tolerance  ± 0.15mm
  Central Wavelength (CWL)
1920 ± 19nm
  Half Power Bandwidth (HPB)
20 ± 5nm
  Tpeak (Tp)
80%
  Out of Band Blocking
400 ~  2200nm
  Tavg
< 1%
  Surface Quality
80/50

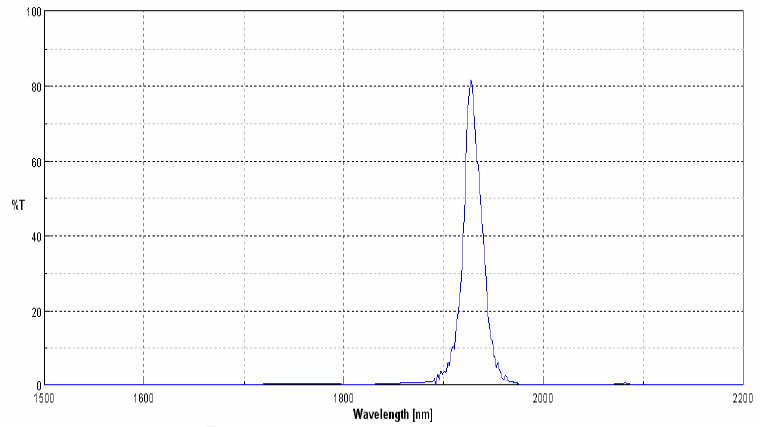

  Transmission Curve
 See Figure Below



Narrow Bandpass Filter, CWL:1920nm, diameter: 5.0mm, thickness: 3.0mm in stock, PIRF-INBP1920-01401 ($108.0):





Contact us for quantity pricing.



See other IR filters
