IR narrow bandpass filters

Specifications for PIRF-INBP1790:

	Material	BK7
	Thickness Tolerance	± 0.05mm
	Length, Width or Diameter Tolerance	± 0.15mm
	Central Wavelength (CWL)	1790 ± 17nm
	Half Power Bandwidth (HPB)	30 ± 10nm
	Tpeak (Tp)	85%
	Out of Band Blocking	400 ~ 3000nm
	Tavg	< 1%
	Surface Quality	80/50

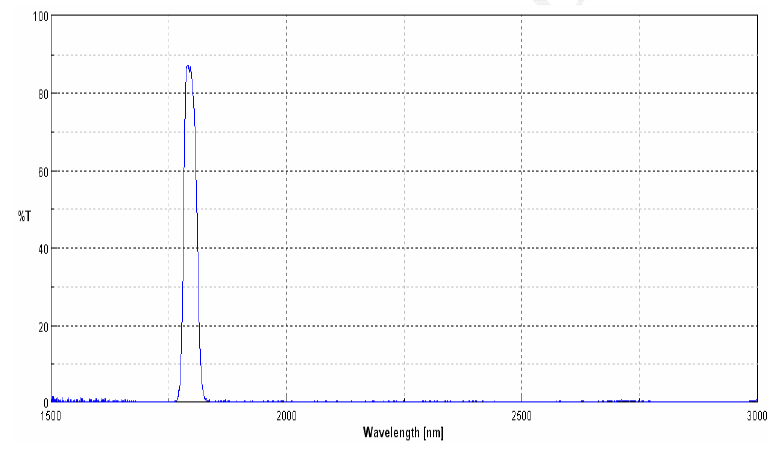

	Transmission Curve	See Figure Below

Narrow Bandpass Filter, CWL:1790nm, diameter: 16.0mm, thickness: 1.0mm in stock, PIRF-INBP1790-01401 ($188.0)



		Contact us for quantity pricing.
