IR narrow bandpass filters

Specifications for PIRF-INBP1440:

	Material	BK7
	Thickness Tolerance	± 0.05mm
	Length, Width or Diameter Tolerance	± 0.15mm
	Central Wavelength (CWL)	1440 ± 14nm
	Half Power Bandwidth (HPB)	20 ± 10nm
	Tpeak (Tp)	75%
	Out of Band Blocking	400 ~ 3000nm
	Tavg	< 1%
	Surface Quality	80/50

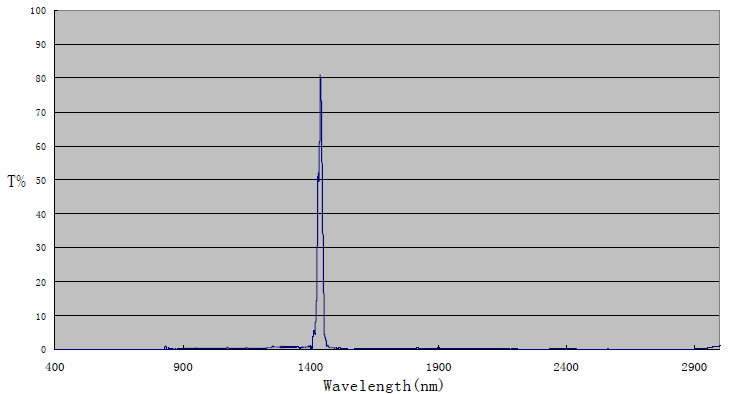

	Transmission Curve	See Figure Below

Narrow Bandpass Filter, CWL:1440nm, diameter: 5.0mm, thickness: 3.0mm in stock, PIRF-INBP1440-01401 ($92.0):



		Contact us for quantity pricing.

Narrow Bandpass Filter, CWL:1450nm, diameter: 30.0mm, thickness: 1.0mm in stock, PIRF-INBP1450-01402 ($268.0):



		Contact us for quantity pricing.
