IR long pass filters

Specifications for PIRF-ILP3000 Type :

	Material	Silicon/Sapphire
	Thickness Tolerance	± 0.05mm
	Length, Width or Diameter Tolerance	± 0.15mm
	50% Cut on	3000 ± 300nm
	Transmission Wavelength Range(TWR)	4000 ~ 1300nm
	Tavg	78%
	Out of Band Blocking	1500 ~ 2500nm
	Surface Quality	80/50

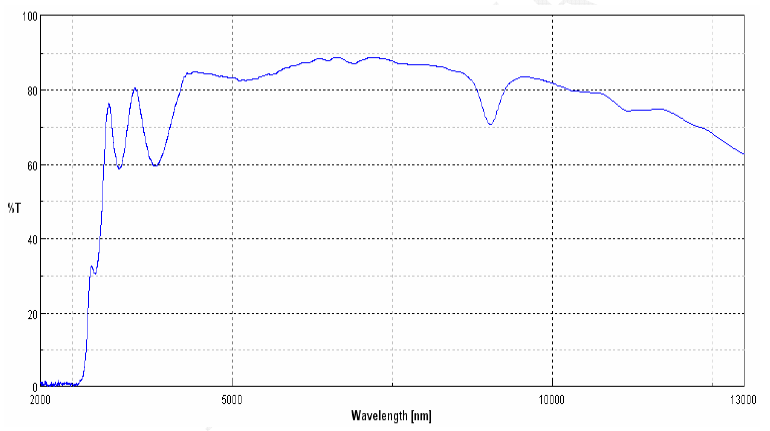

	Transmission Curve	See Figure Below

Long pass Filter, 50% cut on 3000nm, silicon substrate, size: 4.0X4.0mm, thickness: 0.5mm in stock, PIRF-ILP3000-01101 ($68.0):



		Contact us for quantity pricing.
