InGaAs PIN Photodiodes (0.6~1.7um)(950um)





Product Features:

  • Highly Reliable Planar Device
  • Low Leakage Current
  • High Shunt Resistance
  • High Responsivity
  • Low Stray Absorption

Applications:

  • Power Monitoring
  • Spectral Analysis
  • Light Detection and Ranging (LIDAR)
  • Optical Powering

Electrical and Optical Characteristics (T=25ºC):

Parameters
Symbol
Test conditions
Min
Typ Max
Unit
Spectral Response Range
λ
  600
  1700
nm
Dark Current
ID
VR = 5V
  2
5
nA
Shunt Resistance

VR = 10mV
20 80


Responsivity
Re
VR = 0V, λ = 650nm
0.2
0.3
  A/W
VR = 0V, λ = 850nm 0.35
0.45

VR = 0V, λ = 1550nm 0.85
0.95

Capacitance
C
f = 1MHz, VR = 0V

120
160 pF
f = 1MHz, VR = 5V
60
80
Aperture Size
    Φ950
um
Operating Voltage
Vopr

-10
V
Cut-off Frequency
fc
VR = 5V, RL = 50Ω
30
40   MHz
Saturation Power

VR = 0V, λ = 1550nm, -0.2dB
0.5
2   mW
NEP

f = 1KHz,VR = 0V, λ = 1550nm

2.5 5.0 10^-14 W/(Hz)½



Absolute Maximum Ratings (T=25ºC):

  Parameters
Min
Typ Max
Unit
  Reverse Voltage
    10
V
  Reverse Current
    2
mA
  Forward Current
    5
mA
  Operating Temperature
-40
  85
°C
  Storage Temperature
-40
  85
°C



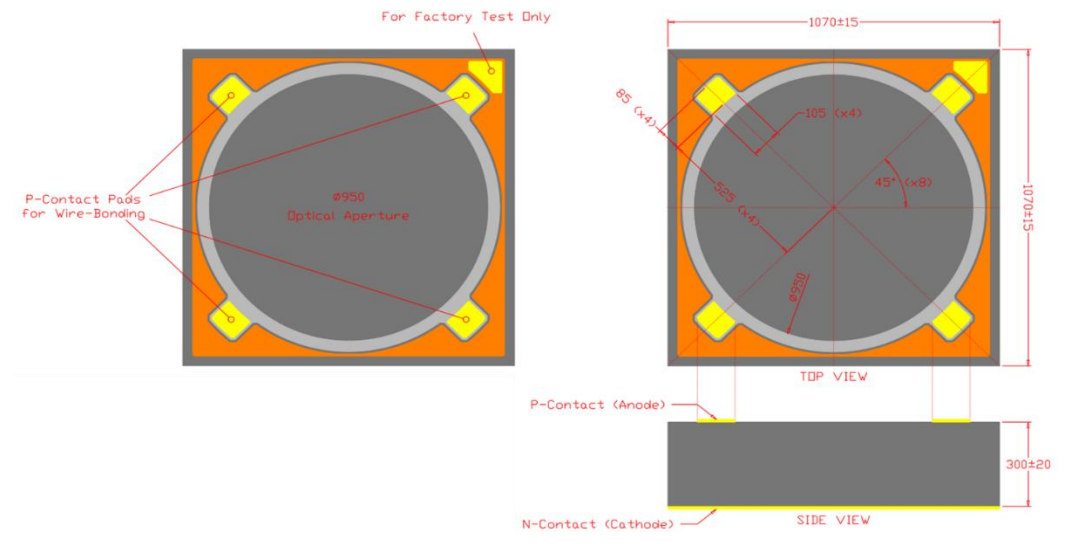

Chip Dimensions:



Photodiode TO-46-3P Dimensions:

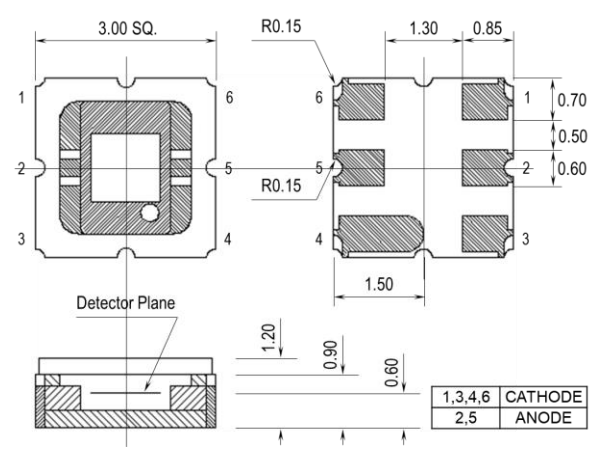

Ceramic Package 6CLCC (3.0SQ) Dimensions:



Example Curves
