Infrared AR Coated Optical Windows

Product Description:

Optical windows are optical materials with polished surfaces that are relatively parallel. They are used to isolate different physical environments while allowing a light beam to pass.



Specification:

Materials   Germanium, Silicon, Sapphire, CaF2 or others
Dimensional Tolerance ± 0.1mm
Flatness λ/2 @ 632.8nm
Surface Quality 40 ~ 20
Clear Aperture 90%
AR coating   Specified by customer



AR Coated Optical grade Germanium window, diameter: 10.0mm, thickness: 1.0mm in stock, AR coating from 3um to 4um, PIRW-100080112 ($50.0):

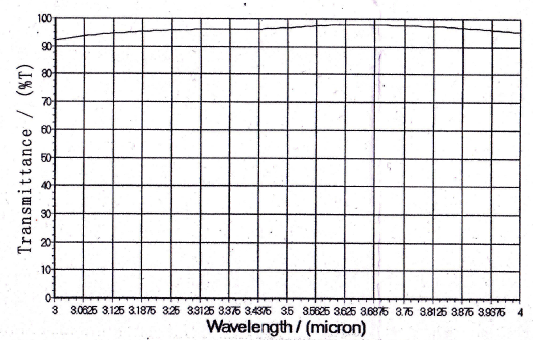

See the AR coating profile below. Contact us for quantity pricing.



AR Coated Optical grade Germanium window, diameter: 25.4mm, thickness: 1.0mm in stock, AR coating from 3um to 4um, PIRW-100080212 ($88.0):





See the AR coating profile below. Contact us for quantity pricing.





AR Coated Optical grade Si window, 6.6X6.6X0.5mm in stock, AR coating from 2um to 12um, Tavg>85%, PIRW-700060121 ($40.0):





Contact us for quantity pricing.



AR Coated Optical grade Si window, 9X11X0.5mm in stock, AR coating from 2um to 12um, Tavg>85%, PIRW-700060221 ($52.0):





Contact us for quantity pricing.
