Product Description:
The transmission wavelength limit (λtj) is defined as a wavelength which corresponds to 50% of the maximum transmissivity on the spectral transmission curve with a glass thickness of 2mm.
The slope of absorption curve is represented as the differece betweeen optical density D(λtj-20) and D(λtj) with a glass thickness of 2mm.
|
|
|
|
|

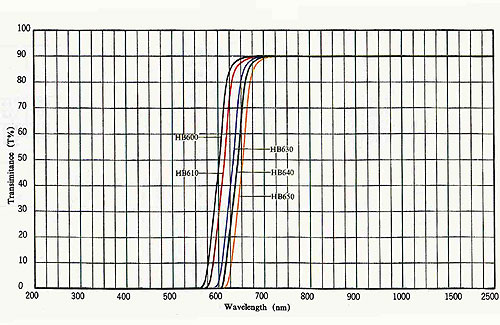

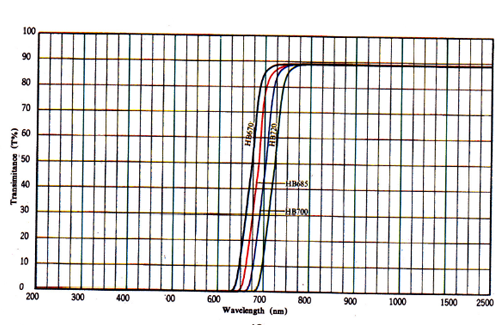

Figure 1: A typical Cut-off Type Red Glass Transmittance Curve
|
Glass Characteristic :
| Type |
Thickness (mm) |
nd |
αX10-7 (/°C) |
Tg(°C) |
Ts(°C) |
λtj (nm) (Tλtj=50%) |
λ0 (nm) |
Tλ0 (%) |
K |
| HB600 |
2 |
1.523 |
103 |
527 |
605 |
600±10 |
680 |
≥88.7 |
≥1.2 |
| HB610 |
2 |
1.523 |
103 |
527 |
605 |
610±10 |
680 |
≥88.7 |
≥1.2 |
| HB630 |
2 |
1.523 |
103 |
527 |
605 |
630±10 |
700 |
≥88.7 |
≥1.2 |
| HB640 |
2 |
1.523 |
103 |
527 |
605 |
640±10 |
720 |
≥88.7 |
≥1.2 |
| HB650 |
2 |
1.523 |
103 |
527 |
605 |
650±10 |
720 |
≥87.5 |
≥1.0 |
| HB670 |
2 |
1.523 |
103 |
527 |
605 |
670±10 |
750 |
≥87.5 |
≥1.0 |
| HB685 |
2 |
1.523 |
103 |
527 |
605 |
685±10 |
800 |
≥83.6 |
≥0.8 |
| HB700 |
2 |
1.523 |
111 |
534 |
592 |
700±10 |
800 |
≥79.8 |
≥0.8 |
| HB720 |
2 |
1.532 |
111 |
534 |
592 |
720±10 |
800 |
≥80.0 |
≥0.8 |
Red Glass HB600 in stock, M52X0.75mm mount, clear aperature: 47mm, thickness; 2mm, PCGF-HB600-0111 ($28.0): ,
|
|
|
|
|
|
|
|
| Outer diameter: 54mm, surface quality: 80/50, thickness with mount: 7.0mm. Contact us for quantity pricing. |
|
