Single Mode Lidless Fiber Arrays

Product Description:

Precision Micro-optics offers high quality Lidless fiber arrays which are made of quartz with flat or angular polished end face. These products feature high pitch accuracy, high reliability and low cost. We also provide customized designs for your specific applications.

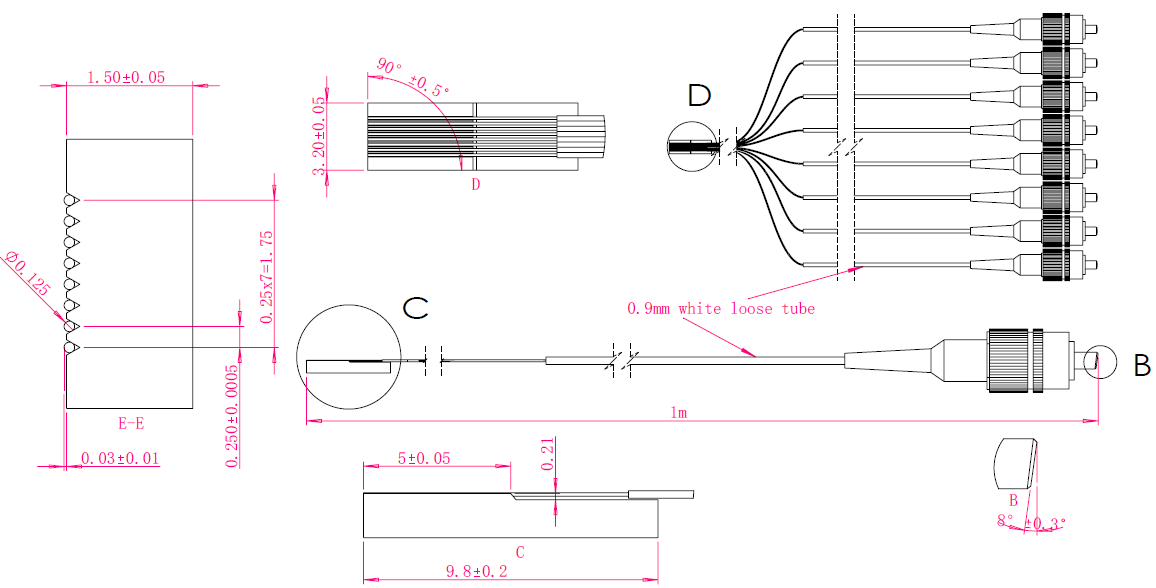

                             Figure: An example for 8 channel 250um spacing, 0 degree lidless fiber array

Applications:

  • Array waveguide gratings
  • Planar splitters
  • Integrated fiber optic components

Specifications :

  Materials
Quartz
  Pitch Accuracy
< 0.7um
  Fiber Spacing
127 um, 250um or others
  Polishing Angle
  0 or 8 Degrees

Lidless fiber Array :

2-channel SMF-28e single mode Lidless fiber array in stock, polishing angle: 0 degrees, 127um spacing. FC/APC connectors. FLFA-1021123101 ($35.0):





Polishing surface quality: 40~20, Contact us for quantity pricing.



2-channel SMF-28e single mode Lidless fiber array in stock, polishing angle: 0 degrees, 250um spacing. FC/APC connectors. FLFA-1022123101 ($35.0):





Polishing surface quality: 40~20, Contact us for quantity pricing.



4-channel SMF-28e single mode Lidless fiber array in stock, polishing angle: 0 degrees, 127um spacing. FC/APC connectors. FLFA-1041123101 ($55.0):





Polishing surface quality: 40~20, Contact us for quantity pricing.



4-channel SMF-28e single mode Lidless fiber array in stock, polishing angle: 8 degrees, 127um spacing. FC/APC connectors. FLFA-1041223101 ($55.0):





Polishing surface quality: 40~20, Contact us for quantity pricing.



4-channel SMF-28e single mode Lidless fiber array in stock, polishing angle: 0 degrees, 250um spacing. FC/APC connectors. FLFA-1042123101 ($55.0):





Polishing surface quality: 40~20, Contact us for quantity pricing.



4-channel SMF-28e single mode Lidless fiber array in stock, polishing angle: 8 degrees, 250um spacing. FC/APC connectors. FLFA-1042223101 ($55.0):





Polishing surface quality: 40~20, Contact us for quantity pricing.



4-channel SM2000 single mode Lidless fiber array in stock, polishing angle: 8 degrees, 250um spacing. FC/APC connectors. FLFA-1042223131 ($330.0):





Polishing surface quality: 40~20, Contact us for quantity pricing.



4-channel SM2000 single mode Lidless fiber array in stock, polishing angle: 0 degrees, 250um spacing. FC/APC connectors. FLFA-1042123131 ($330.0):





Polishing surface quality: 40~20, Contact us for quantity pricing.



8-channel SMF-28e single mode Lidless fiber array in stock, polishing angle: 8 degrees, 127um spacing. FC/APC connectors. FLFA-1081223101 ($82.0):





Polishing surface quality: 40~20, Contact us for quantity pricing.



8-channel SMF-28e single mode Lidless fiber array in stock, polishing angle: 8 degrees, 250um spacing. FC/APC connectors. FLFA-1082223101 ($82.0):





Polishing surface quality: 40~20, Contact us for quantity pricing.



8-channel SMF-28e single mode Lidless fiber array in stock, polishing angle: 0 degrees, 127um spacing. FC/APC connectors. FLFA-1081123101 ($82.0):





Polishing surface quality: 40~20, Contact us for quantity pricing.



8-channel SMF-28e single mode Lidless fiber array in stock, polishing angle: 0 degrees, 250um spacing. FC/APC connectors. FLFA-1082123101 ($82.0):





Polishing surface quality: 40~20, Contact us for quantity pricing.



Standard Size Table:

  Dimensions P/N
Channels
Pitch (um) Length (L:mm) Width (W:mm) Height (T:mm) Height (t:mm)
  01
2
127
 10.0  2.5  1.5  1.5
  02
2
250
 10.0  2.5  1.5  1.5
  03
4
127
 10.0  2.5  1.5  1.5
  04
4
250
 10.0  2.5  1.5  1.5
  05
8
127
 10.0  2.5  1.5  1.5
  06
8
250
 10.0  3.2  1.5  1.5
  07
16
127
 12.0  3.5  1.5  1.5
