Singlemode 1X2 mechanical switches (1310nm, 1550nm, 1310/1550nm, 850nm or others)


Features:

  • Low Insertion Loss
  • Optical Path Epoxy Free
  • Low PDL
  • High Stability and Reliability

Specifications :

  Wavelength
1310±40nm, 1550±40nm, 1310/1550±40nm or 850±20nm
  Insertion Loss
0. 4dB Typ, 0.8dB Max
  Crosstalk
>55dB
  Switch Time
< 5ms
  Return Loss
>50dB
  Polarization Dependent Loss
<0.05dB
  Wavelength Dependent Loss
<0.2dB
  Maximum Power Handling
500mw
  Repeatability
<±0.02dB
  Durability
>10^7 Cycles
  Driving Voltage
5V
  Type
Latching/Non-latching
  Operating Temperature
  -5 ~ 70 ºC
  Storage Temperature
  -40 ~ 85 ºC
  Dimensions
  27x12.6x8.0mm
  Fiber
 SMF-28 for 1310nm or 1550nm, HI780 for 780nm

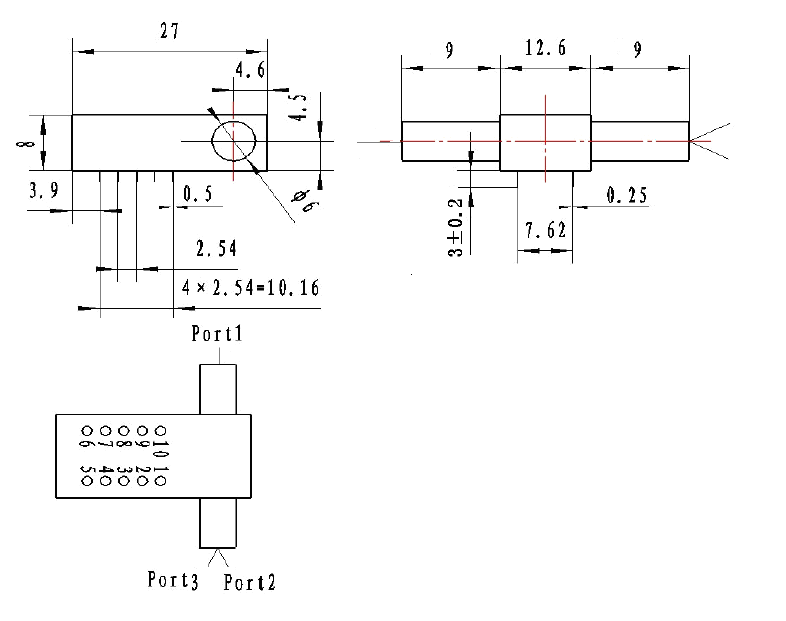

Dimensions and PIN Definition (Unit: mm):

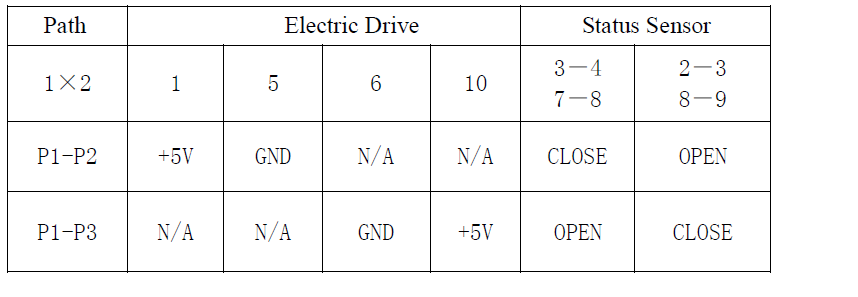

PIN Group and Driving Table:


1X2 1310nm SMF-28e fiber, 900um loose tube, FC/APC connectors, Latching type switch in stock, FMSW-130121223 ($120.0): :





Contact us for quantity pricing.

1X2 1310nm SMF-28e fiber, 900um loose tube, FC/PC connectors, Latching type switch in stock, FMSW-130121222 ($120.0): :





Contact us for quantity pricing.

1X2 1550nm SMF-28e fiber, 900um loose tube, FC/APC connectors, Latching type switch in stock, FMSW-150121223 ($120.0): :





Contact us for quantity pricing.

1X2 1550nm SMF-28e fiber, 900um loose tube, FC/PC connectors, Latching type switch in stock, FMSW-150121222 ($120.0): :





Contact us for quantity pricing.
