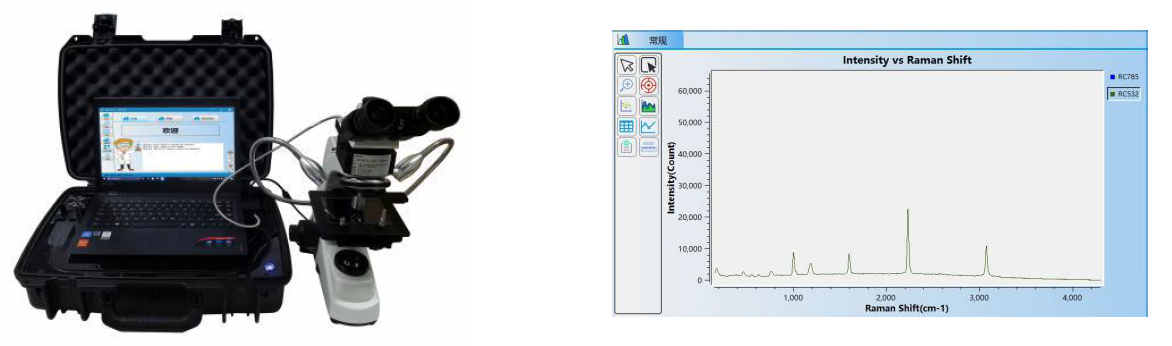

Raman microscope MHU 532



Product Features:

  • 532nm excitation laser, high end light detector, grating spectroscopy, focus using an objective lens.
  • 0.1nm FWHM.
  • Optical probe acquires the Raman light of the substance with high coupling efficiency of the excitation laser.
  • Software has functions of laser control, Raman spectroscopy, database management, analyzing the substance and log (recording the experiment content etc.)
  • Non-contact Raman spectral measurement and analysis.
  • Excellent thermal and vibrating stability.
  • Easy to carry and use.
  • Camera for video recording.


  • Poisons, dangerous goods, illicit drugs, biochemical analysis
  • Food, drug identification
  • Identification of jewelry/heritage: jewelry identification, artifacts or nature , place of origin and age
  • DNA, human metabolites (blood, urine etc.) and cancer cells identification
  • Geology: field prospecting, mineral composition qualitative analysis and inclusion studies

Specifications :

Parameters Specifications Remarks
Excitation Wavelength 532nm Optional upon request
Raman Probe Laser Power 0-50mW
0-40mW (after microscope objective lens )
Working Distance of Raman Focus Focal length of the objective lens
Raman Spectrum 200~4000cm-1
Spectral Resolution 15cm-1@1000.7cm-1
Stray Light 0.29% @532nm
Light Detector High end detector Cooled CMOS optional upon request
Pixel Number 2048
Pixel Size 8μmx200μm
SNR 300:1@1000.7cm-1 Benzonitrile Cooled light detector
ADC Resolution 16 bits
Integration Time 1ms-15min
Power Supply DC12V/5A
Probe Fiber 1M armed
Dimensions 508mmx373mmx147mm
Weight 6Kg(Raman spectrometer)
Operating Temperature 0~45℃
Storage Temperature -10~55℃


532nm Raman microscope including microscope, MHU 532 ($20800):


Around 4-week lead time, Contact us for quantity pricing.
