Multimode 1X2 mechanical switches (1310nm, 1550nm, 1310/1550nm, 850nm or others)


Features:

  • Low Insertion Loss
  • Optical Path Epoxy Free
  • High Stability and Reliability

Specifications :

  Wavelength
1310±40nm, 1550±40nm, 1310/1550±40nm or 850±20nm
  Insertion Loss
0. 5dB Typ, 0.9dB Max
  Crosstalk
>50dB
  Switch Time
< 5ms
  Return Loss
>35dB
  Wavelength Dependent Loss
<0.2dB
  Maximum Power Handling
500mw
  Repeatability
<±0.02dB
  Durability
>10^7 Cycles
  Driving Voltage
5V
  Type
Latching/Non-latching
  Operating Temperature
  -5 ~ 70 ºC
  Storage Temperature
  -40 ~ 85 ºC
  Dimensions
  27x12.6x8.2mm
  Fiber
 50/125 OM3

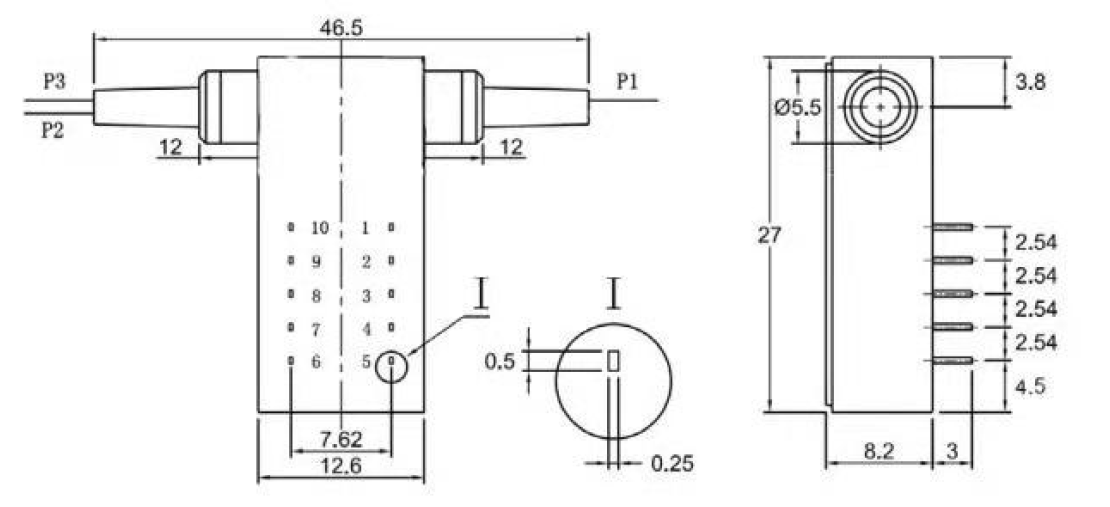

Dimensions and PIN Definition (Unit: mm):


PIN Group and Driving Table:


1X2 850nm 50/125OM3 fiber, 900um loose tube, FC/PC connectors, Latching type switch in stock, FMSW-850621222 ($150.0): :





Contact us for quantity pricing.
