Miniature Fiber Array

Product Description:

Precision Micro-optics offers a variety of high quality miniature fiber arrays. These products feature ultra small size, high pitch accuracy, high reliability and low cost. We also provide customized designs for your specific applications.

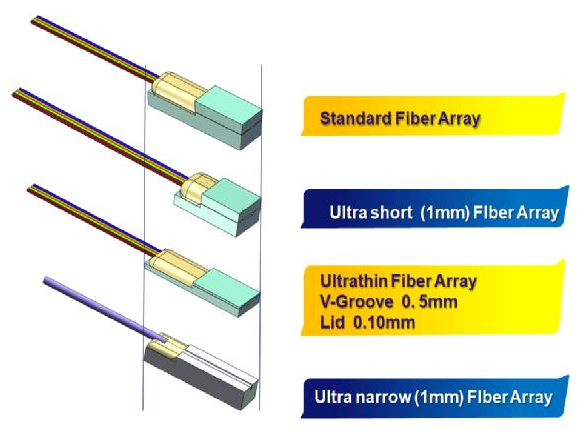

Features:

• Channel:2,4,8,12,24
• Ultrathin Lid:0.10mm, V-Groove:0.5mm
• Width: 1mm
• Ultrashort: 1mm
• Fiber Type: PM,SM,MM fiber

Applications:

• Optical Device/Module
• PIC

3-channel PM1550 fiber array in stock, lid thickness: 0.1mm, width: 0.7mm, length: 5.7mm , polishing angle: 8 degrees, A-type, 127um spacing. FC/APC connectors. FMPFA-102031223321 ($185.0):

		1.0 meter fiber length, PM fiber alignment: orientation II. Contact us for quantity pricing.

8-channel SMF-28e single mode fiber array in stock, lid thickness: 0.2mm, polishing angle: 0 degrees, 250um spacing. FC/APC connectors. FMFA-10821231012 ($90.0):

		Contact us for quantity pricing.

8-channel SMF-28e single mode fiber array in stock, lid thickness: 0.1mm, polishing angle: 8 degrees, A-type, 127um spacing. FC/APC connectors. FMFA-10812231011 ($96.0):

		Contact us for quantity pricing.

8-channel PM1550 fiber array in stock, lid thickness: 0.1mm, polishing angle: 8 degrees, A-type, 127um spacing. FC/APC connectors. FMPFA-102081223321 ($430.0):

		1.0 meter fiber length, PM fiber alignment: orientation II. Contact us for quantity pricing.

16-channel SMF-28e single mode fiber array in stock, lid thickness: 0.1mm, polishing angle: 8 degrees, A-Type, 127um spacing. FC/APC connectors. FMFA-11612231011 ($160.0):

		Contact us for quantity pricing.

32-channel SMF-28e single mode lidless fiber array in stock, width: 4.4mm, polishing angle: 8 degrees, A-Type, 127um spacing. FC/APC connectors. FMLFA-1321223101L ($378.0):

		Contact us for quantity pricing.
