MEMS VOA (980, 1035, 1064, 1310, 1550nm)

Product Description:

Precision Micro-Optics offers miniature MEMS VOA (Micro Electro-Mechanical Systems Variable Optical Attenuator). it is a micro-optic component designed for next generation, dynamically configurable optical networks. It is based on the Photonic Integrated Circuit (PIC) and electrostatic MEMS technology. The reflective mirror MEMS technology enables the creation of products with high attenuation levels and can be configured as bright or dark devices. When combined with the advanced packaging and manufacturing capabilities, this results in a new category of MEMS components that are designed to exceed specifications for performance, compactness, manufacturability and reliability. we provides a series of customized MEMS VOA products to meet different requirements on operating wavelength, attenuation type, drive voltage and fiber type

Features:

Low Insertion Loss
Low Polarization Dependent Loss
Compact Design
High Attenuation
Low Power Consumption
Insensitive to Shock and Vibration
High Stability
High Reliability
Cost Effective

Applications:

Power Control and Equalization
Receiver Protection
Fiber Optic Sensor
Test and Measurement
Instrumentation

Specifications :

Parameters	Unit	Min	Typical	Max
Wavelength**	nm	1510	1550	1590
Wavelength**	nm	1290	1310	1330
Wavelength**	nm	1020	1035	1050
Response Time ((10-90% Optical Power)	ms			3
Driving Voltage	V			6
Power Consumption	mw			2
Insertion Loss	dB		0.5	0.8
Attenuation Range	dB	30
Polarization Dependent Loss (SM, 0dB Attenuation)	dB			0.1
Polarization Dependent Loss (SM, 20dB Attenuation)	dB			0.3
WDL (0dB Attenuation)*	dB			0.3
WDL (20dB Attenuation)*	dB			1.5
Extinction Ratio (PM)	dB	18
Power Handling	W			0.3
Return Loss	dB	45	55
Operation Temperature	°C	-5	75
Storage Temperature	°C	-40	85
Fiber Type**	NA	SMF-28, PM1550 or others

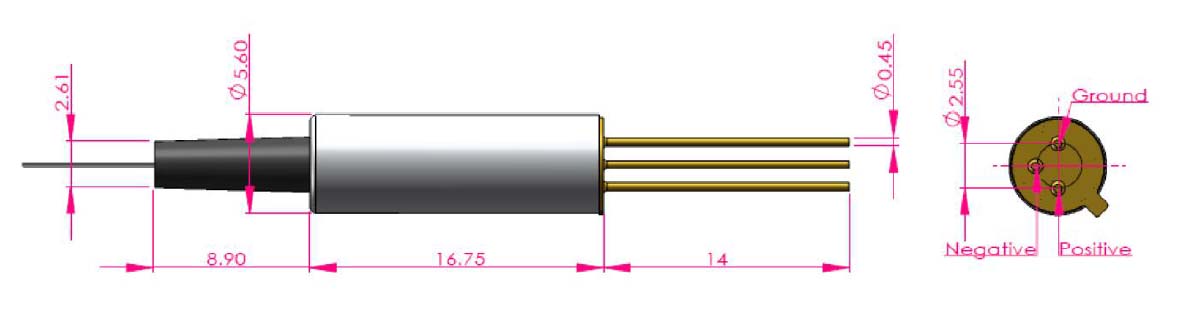

Package Dimension	mm	Ф5.6XL16.75(L)
Attenuation Type	mm	Bright or Dark

Notes:
*: At room temperature, exclude connectors
**: Other options are available upon on request

1550nm PM VOA, FC/APC connectors, bright type, 0~6.0V driving voltage, 900um loose tube protection, FVOA-150221223 ($168.0): :



		Contact us for quantity pricing.

1550nm PM VOA, FC/APC connectors, dark type, 0~6.0V driving voltage, 900um loose tube protection, FVOA-150223223 ($182.0): :



		Contact us for quantity pricing.

1550nm SM VOA, FC/APC connectors, bright type, 0~6.0V driving voltage, 900um loose tube protection, FVOA-150121223 ($92.0): :



		Contact us for quantity pricing.

1035nm HI1060 fiber VOA, FC/APC connectors, bright type, 0~6.0V driving voltage, 900um loose tube protection, FVOA-160821223 ($365.0): :



		Contact us for quantity pricing.

1035nm PM980 fiber VOA, FC/APC connectors, bright type, 0~6.0V driving voltage, 900um loose tube protection, FVOA-160421223 ($650.0): :



		Contact us for quantity pricing.
