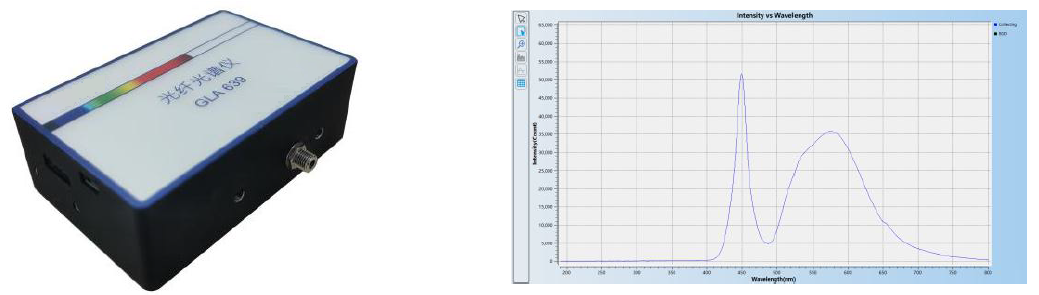

Fiber Spectrometer GLA639 VIS

Product Features:

• Czerny-Turner optical structure with a grating, high end light detector and SMA905 fiber connector.
• Connected to a computer through USB, RS232 or other connector for industrial control, controlled and powered by the computer.
• Unique software features, automatic configuration of spectrometer, automatic reading of calibration coefficients, spectral acquisition and measurement.
• Spectral measurements including radiation, transmittance, absorbance and reflectivity.
• Two output data formats, conventional Excel two-column format and square format, the latter can be used to check the spectral data easily.
• The selected spectral data on the spectral curve are marked using different colors, including the cursors and the area boundary lines, allowing users to easily find data in a large number of spectral data.
• Cursors are used to find the wavelengths. The spectral width is found by moving the two boundary lines.
• Software logging allows the user to record experimental content such as the material analyzed, the operator and time etc.
• Color bars help users understand the corresponding wavelengths of the spectrum.
• Interfaces and data formats for industrial control, such as Linux, ARM and PLC etc.
• Compact size.
• Excellent thermal and vibrating stability.
• GLA639 fiber spectrometer includes UV bands spectrometer, VIS band spectrometer and NIR band spectrometer.

Applications:

• Environmental inspection: inspection of water quality and air pollution etc.
• Chemical industry.
• Optical coating inspection.
• Glass and transparent materials inspection.
• Measuring light sources such as LEDs

Specifications :

350-1000nm Fiber Spectrometer, any choice of slit, GLA639-VIS ($1940):

		Around 2-week lead time, Contact us for quantity pricing.
