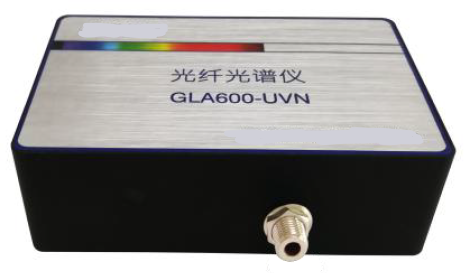

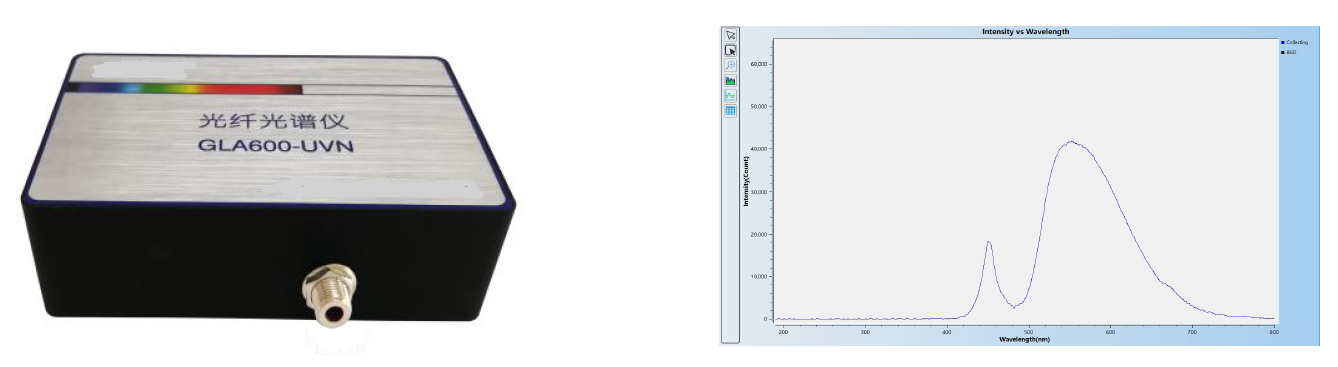

Fiber Spectrometer GLA600-UVN UV/VIS



Product Features:

  • Czerny-Turner optical structure with a grating, CCD detector and a SMA905 fiber connector.
  • Connected to a computer through USB, controlled and powered by the computer.
  • Unique software features, automatic configuration of spectrometer, automatic reading of calibration coefficients, spectral acquisition and measurement, logging and color bar display.
  • Spectral measurements including radiation, transmittance, absorbance and reflectivity.
  • Two output data formats, conventional Excel two-column format and square format, the latter can be used to check the spectral data easily
  • The selected spectral data on the spectral curve are marked using different colors,including the cursors and the area boundary lines, allowing users to easily find data in a big amount of the spectral data.
  • Cursors are used to find the wavelengths. The spectral width is found by moving the two boundary lines.
  • Software logging allows the user to record experimental content such as the material analyzed, the operator and time etc.
  • Cursors are used to find the wavelengths. The spectral width is found by moving the two boundary lines.
  • Color bars help users understand the corresponding wavelengths of the spectrum.
  • Excellent thermal and vibrating stability.
  • Compact size.


  • Environmental inspection: inspection of water quality and air pollution etc.
  • Chemical industry.
  • Optical coating inspection.
  • Glass and transparent materials inspection.
  • Measuring light sources such as LEDs

Specifications :

Parameters Specifications Remarks
Fiber Connector SMA 905
Slit 10, 25, 50, 100μm Optional upon request
Wavelength Range 190-750nm Depends on the grating
Spectral Resolution FWHM 0.96nm@Hg 253nm @25μm slit Depends on wavelengths and slits
Order Sorting Filter To eliminate higher order spectrum Optional upon request
Stray Light 0.1%@253nm Depends on wavelengths
Light Detector Toshiba TCD1304DG (UV enhanced)
Pixel Number 3648
Pixel Size 8μmx200μm
Detector Collecting Lens Yes Optional upon request
SNR 800:1 Room temperature
ADC Resolution 16 bits
Integration Time 8 ms-15min
Data Output Count vs. wavelength or pixel
Power Supply DC5V/250mA
Trigger Mode Trigger in or out with TTL
Communication USB
Operation Software SPEC-GLA600
Application Programming Interface glaDevSys For developing software by users
Dimensions 100mmx65mmx36mm
Weight 285g
Mounting 4xM3 screw holes on the bottom
Operating Temperature -10~50℃
Storage Temperature -20~70℃


190-750nm Fiber Spectrometer, any choice of slit, GLA600-UVN-UV VIS1 ($1780):


Around 2-week lead time, Contact us for quantity pricing.
