Fiber Bragg Sensor Gratings

Product Description:

A fiber Bragg grating (FBG) is a type of distributed Bragg reflector formed in a short segment of optical fiber. It reflects particular wavelengths of light and transmits all others. The Bragg wavelength will change when the fiber grating experience any change in fiber properties, such as strain or temperature which varies the reflective index or grating pitch. we offer both acrylate and polyimide coated fiber Bragg gratings.





Specifications :

  Central Wavelength Range
780~1650nm
  CWL Tolerance
±0.2nm
  Reflectivity
>90% or customized SPEC
  3dB Bandwidth
around 0.22nm
  Side-Mode Suppression Ratio
> 15dB
  Coating Material
acrylate and polyimide for high temperature
  Packaging
  None

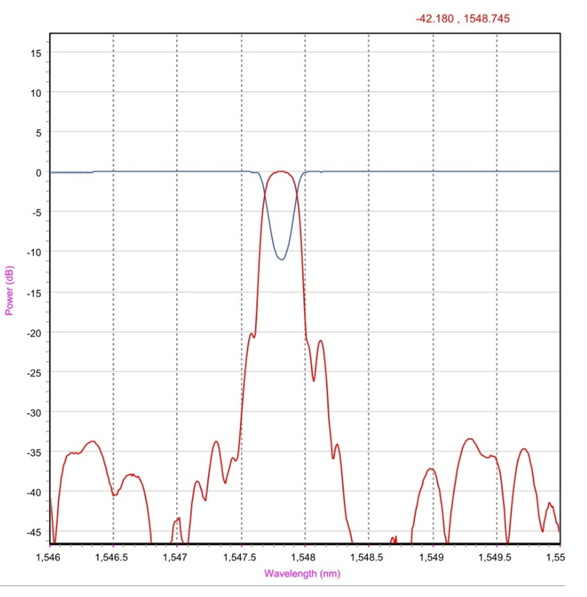

Figure 1: A typical reflective curve with one grating.

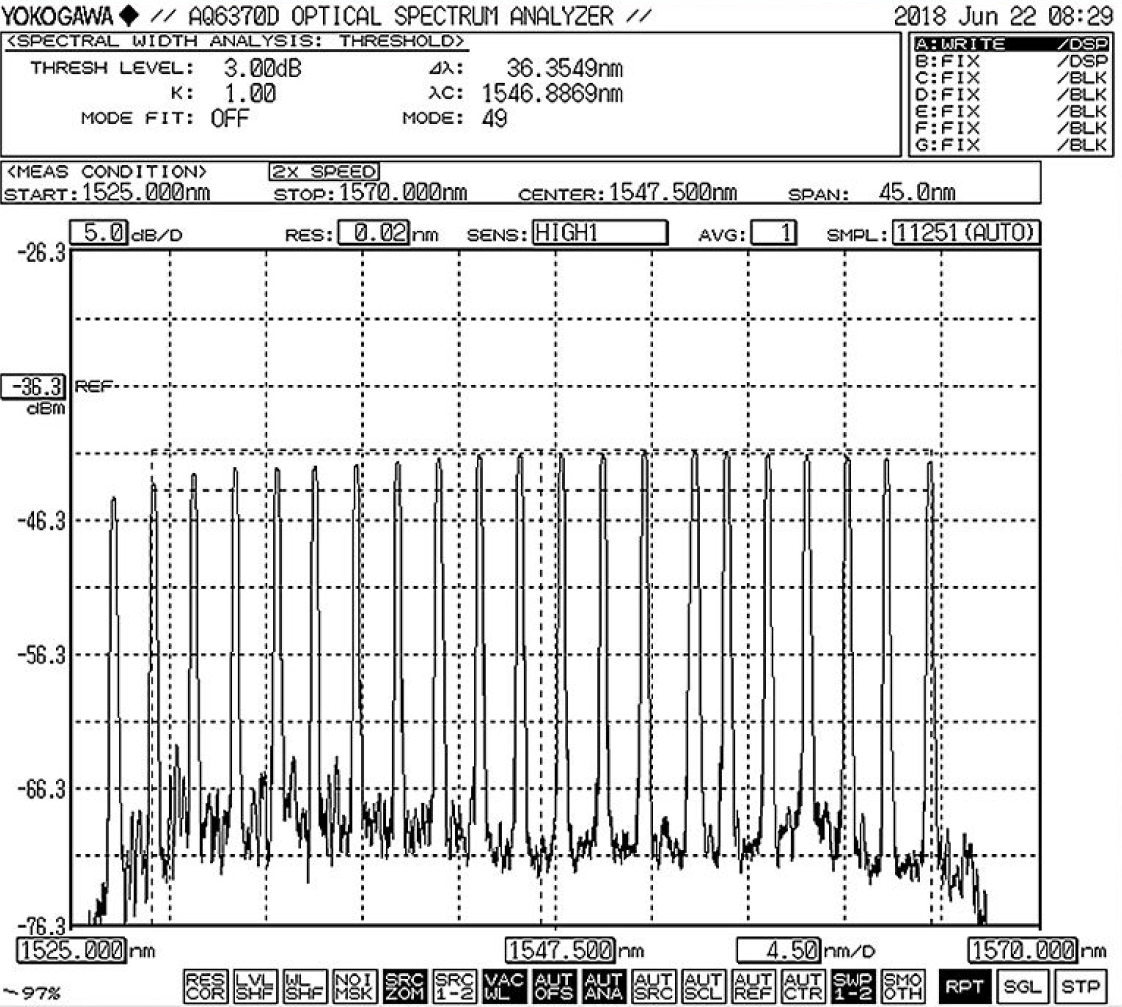

Figure 1: A typical reflective curve with multiple gratings.



SMF-28e fiber grating with central wavelength at 1564.7nm in stock, R is around 90%, FC/APC connector, FBSG-156471902 ($45.0)





Contact us for quantity pricing.



polyimide fiber grating with central wavelength at 1565.8nm in stock, R is around 90%, FC/APC connector, FBSG-156582902 ($82.0)





Contact us for quantity pricing.



SMF-28e fiber multiple gratings with central wavelength at 1532nm and 1536nm in stock, R is around 90%, FC/APC connector, FBSG-153201902204 ($58.0)





Contact us for quantity pricing.
