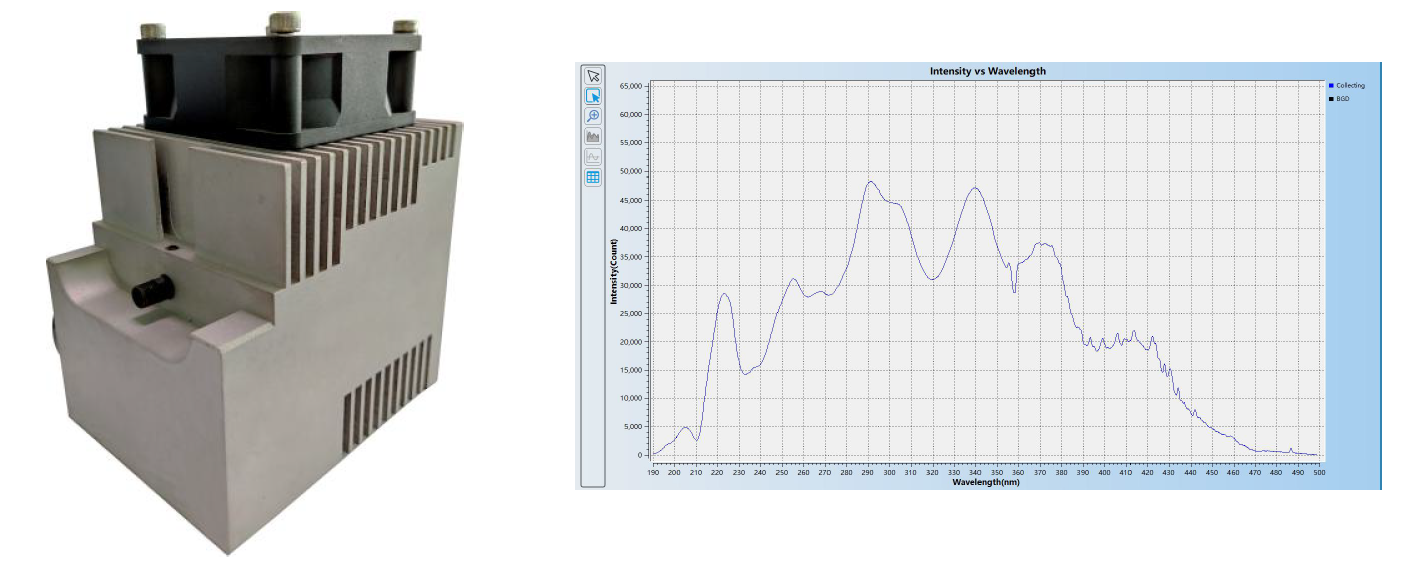

Deuterium lamp DYM 1000



Product Features:

  • High power deuterium light source with fiber coupling output.
  • Easily integrated with spectrometers and other devices.
  • Excellent stability.
  • Compact and cost effective.
  • Default fiber interface is SMA905, other fiber interfaces such as FC etc. are optional.


  • Environmental inspection: inspection of water quality and air pollution
  • Spectral analysis
  • Instrument lighting
  • R & D in science and technology

Specifications :

Parameters Specifications Units
Wavelength Range 185-400 nm
Fiber Connector SMA905
Power Supply AC220/0.4 V/A
Trigger Voltage 2.5 V
Trigger Current 3.3 A
Output Drift 0.16% Peak-Peak
Life Time 2000 Hrs
Dimensions 105x83x115 mm
Operating Temperature 0-45 °C


Deuterium lamp, DYM 1000 ($1380):


Around 2-week lead time, Contact us for quantity pricing.
