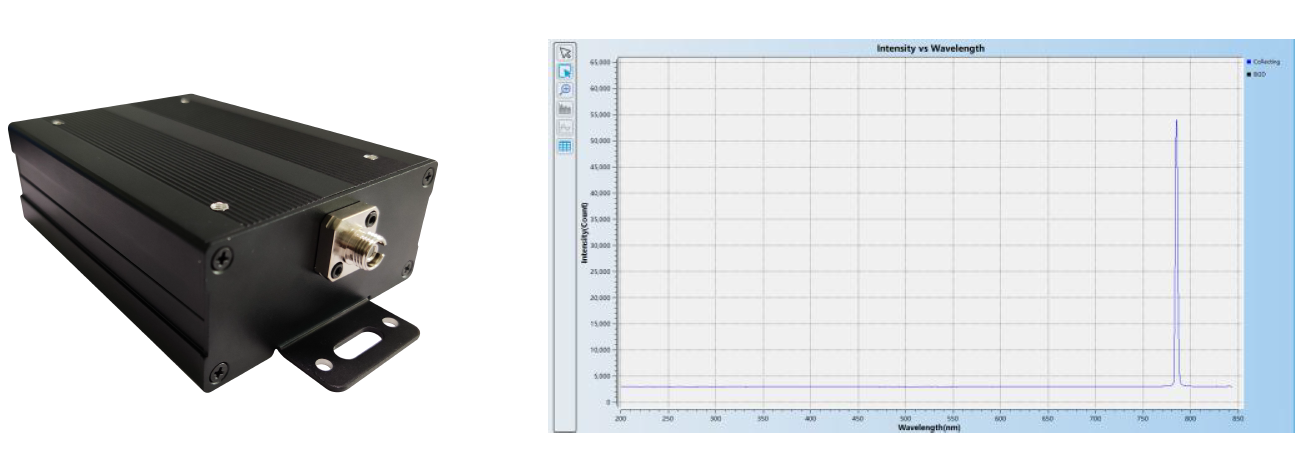

785nm laser GL-785LD-500



Product Features:

  • High power 785nm laser with fiber coupling output.
  • 0.1nm FWHM.
  • Three operating modes: CW, pulse and external trigger.
  • Easily integrated with spectrometers and other devices.
  • Excellent stability.
  • Compact, versatile and cost effective.
  • Default fiber interface is SMA905, other fiber interfaces such as FC etc. are optional.


  • Instrument lighting
  • Raman spectroscopy
  • Spectral analysis
  • Material inspections
  • R & D in science and technology

Specifications :

Items Specifications Units
Fiber Connector SMA905 or FC
Center Wavelength 785 nm
FWHM 0.1 or 0.2(Optional) nm
Output Power 0~500 mW
Output Stability 0.5 %
Threshold Current 300 to 350 mA
Power Supply DC5/1.5 V/A
Communication USB
Cooling Mode Built-in TEC, with an outside heat sink
Dimensions 135x75x35 mm
Weight 300 g
Expected Lifetime >10,000 hrs


785nm laser, GL-785LD-500 ($2550):


Around 2-week lead time, Contact us for quantity pricing.
