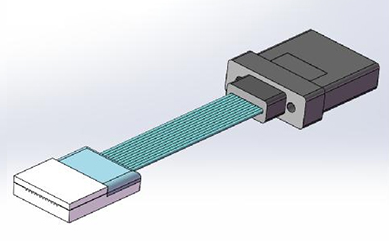

MFD Matched Fiber Array

Product Description:

Precision Micro-optics offers high quality MFD matched fiber arrays per your application requirements such SMF28e to UHNA1, UHNA2 or other fibers. These products feature MFD match with waveguide, high pitch accuracy, high reliability and low cost. We also provide customized designs for your specific applications.


Features:

  • Channel:2,4,8,12
  • Core Pitch:250μm, 500μm,
  • Fiber MFD:3.2μm,5.5μm or others
  • Tolerance:<0.5μm
  • Fiber Type: SM

Applications:

  • Optical Device/Module
  • High speed Transceiver with Silicon Photonics
