Ultraviolet Glass (Selective Absorption Type)

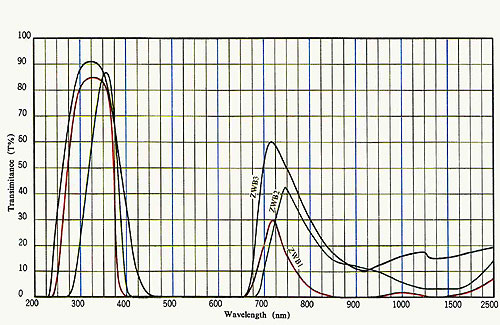

Glass Spectral Characteristic:

Glass Characteristic :

Type

Thickness (mm)

n_d

αX10^-7 (/°C)

T_g(°C)

T_s(°C)

T (254nm)

T (280nm)

T (313nm)

T (334nm)

T (365nm)

T (405nm)

T (700nm)

ZWB1

1

1.557

94

529

588

≥50%

≥81%

≤1%

≤30%

ZWB2

1

1.520

97

515

589

≥38%

≥80%

≤8%

≤14%

ZWB3

2

1.526

85

527

616

≥34%

≥86%

≤28.8%

64.6%

Ultraviolet Glass ZWB2 in stock, no mount, diameter: 12.7mm, thickness; 2mm, PCGF-ZWB2-0112 ($9.0): ,



		Surface quality: 60/40. Contact us for quantity pricing.

Ultraviolet Glass ZWB2 in stock, no mount, diameter: 25.0mm, thickness; 2mm, PCGF-ZWB2-0212 ($12.0): ,



		Surface quality: 60/40. Contact us for quantity pricing.
