InGaAs PIN Photodiode Chip on Ceramic (DPIN-441)

InGaAs PIN Photodiode Chip on Ceramic, Active Area 300um in Stock, DPIN-441 ($26.0):





The photodiode chip on ceramic has superior noise and photoelectric performance. Contact us for quantity pricing.



Electrical and Optical Characteristics (T=25ºC):

Parameters
Symbol
Test conditions
Min
Typ Max
Unit
Spectral Response Range
λ
  1000
  1650
nm
Dark Current
ID
VR = 5V
  0.5
1.0
nA
Responsivity
Re
VR = 5V, λ = 1310nm
0.88
0.93
  A/W
VR = 5V, λ = 1550nm 0.92
0.98
  A/W
Active Area
    Φ300
um
Capacitance
C
f = 1MHz, VR = 5V   5.0
6.0
pF
Operating Voltage
Vopr
    -5
-15
V
Rise & Fall Time
fc
VR = 5V     3
ns



Absolute Maximum Ratings (T=25ºC):

  Parameters
Min
Typ Max
Unit
  Reverse Voltage
    25
V
  Input Optical Power
    10
dBm
  Operating Temperature
-40
  85
°C
  Storage Temperature
-40
  85
°C

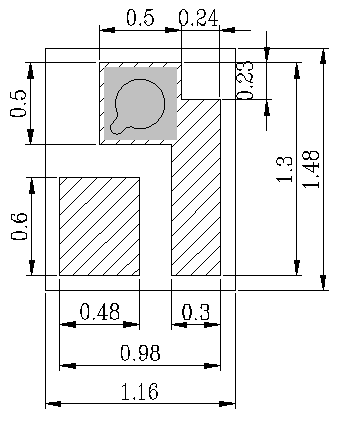

Package Dimensions:



Spectral Response, Responsivity vs. Temperature :
